Adastra TGM4 Talk-Through-Glass System

Description

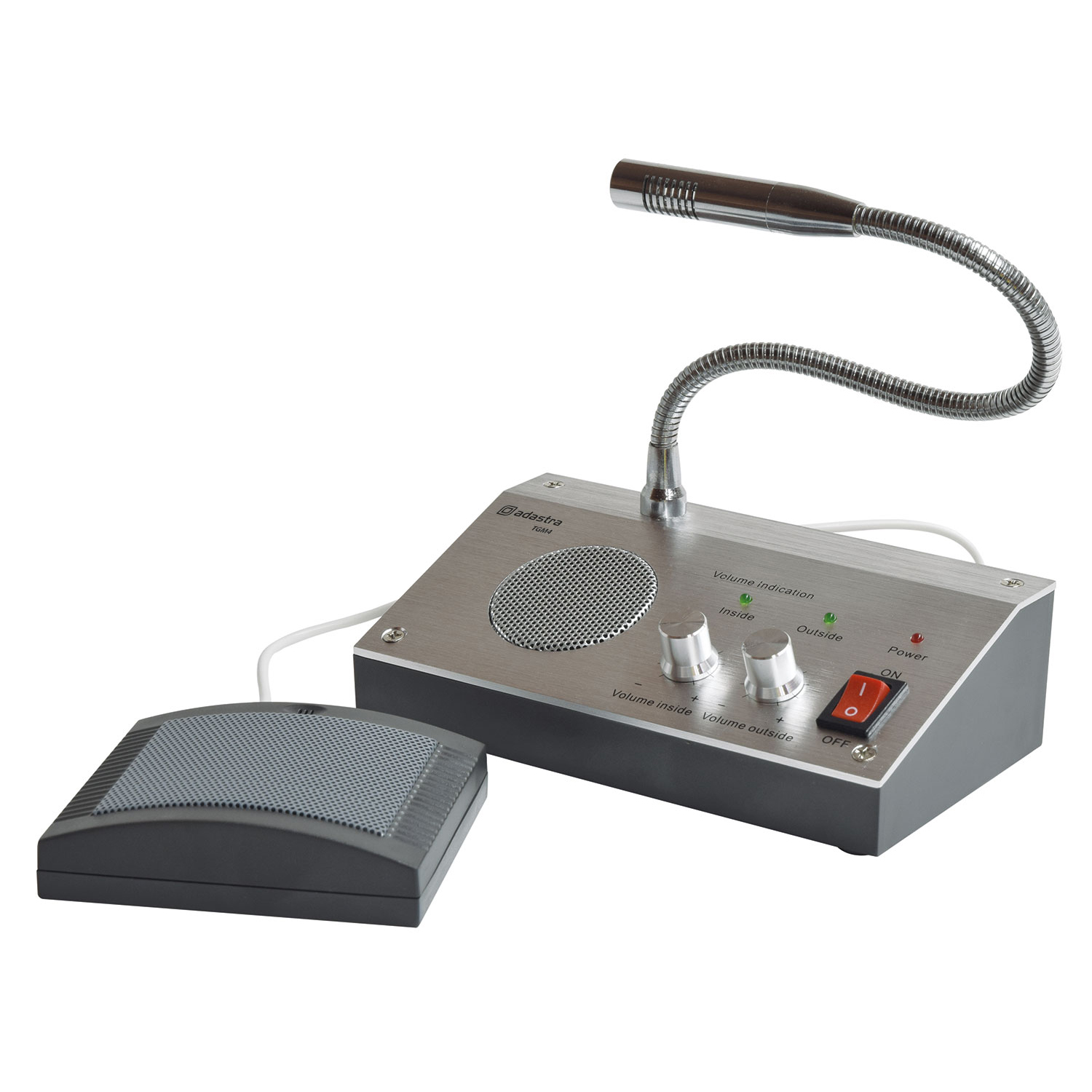

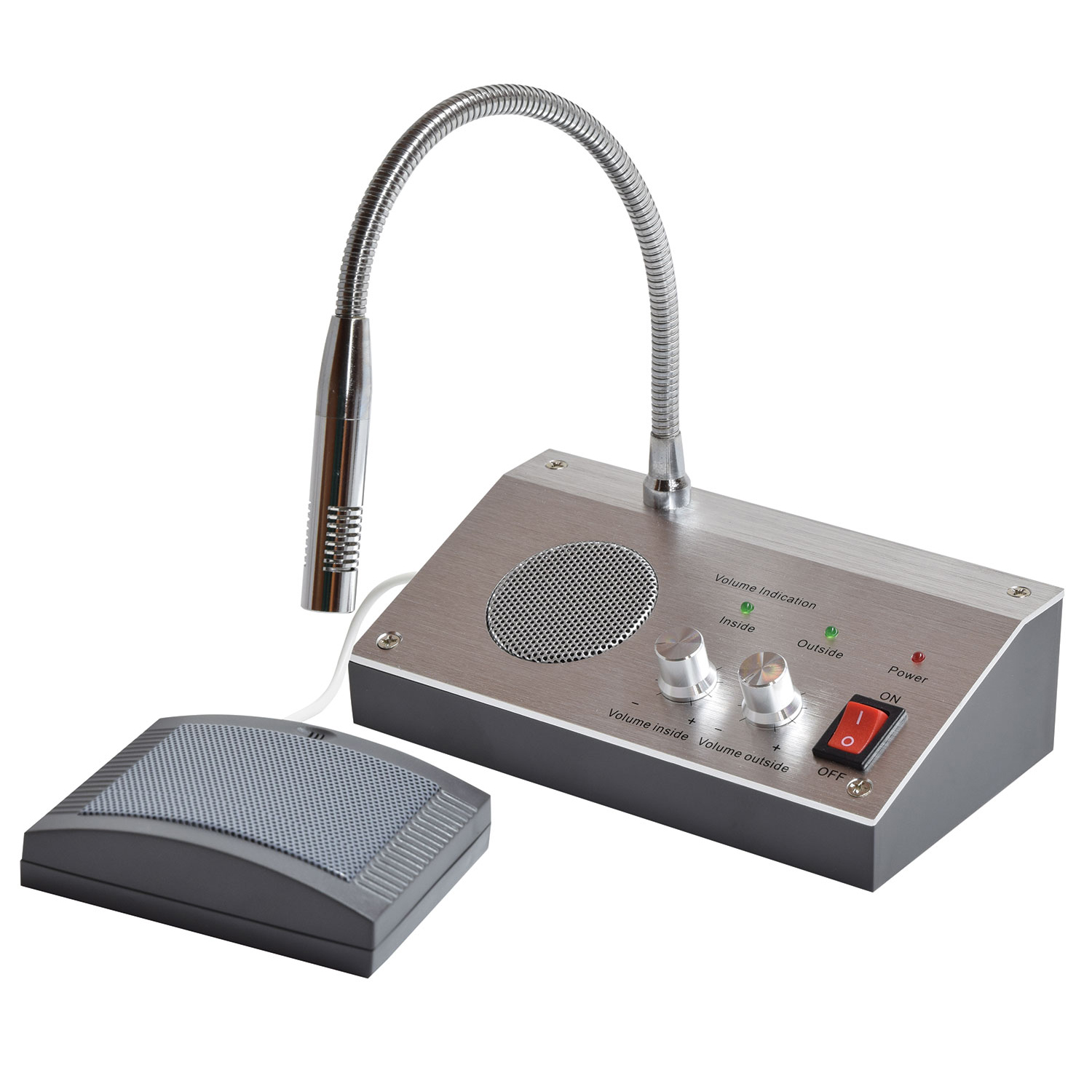

Adastra TGM4 two-way talk-through-glass system

Intercom for conversation through a glass partition comprising a desktop speaker unit with gooseneck microphone and an extension speakerphone unit, which can be positioned horizontally or vertically in the client area. Independent level controls for the main unit and client speakerphone provide tailored adjustment to overcome the ambient noise level, with muting and anti-feedback circuitry to make two-way conversation clear and intelligible. an additional output is provided for recording both sides of the conversation. Applications include ticket booths, bank counters, petrol stations and receptions.

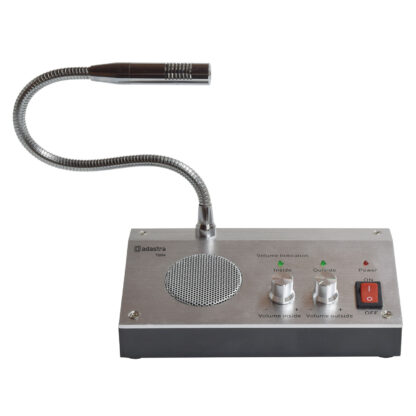

• Desktop main speaker unit with gooseneck microphone

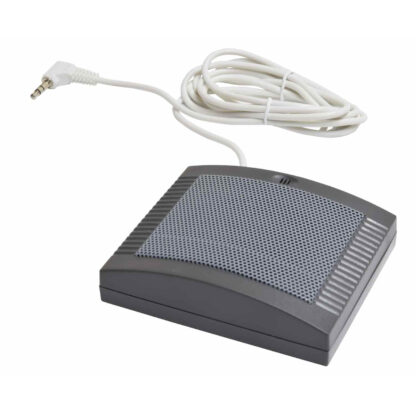

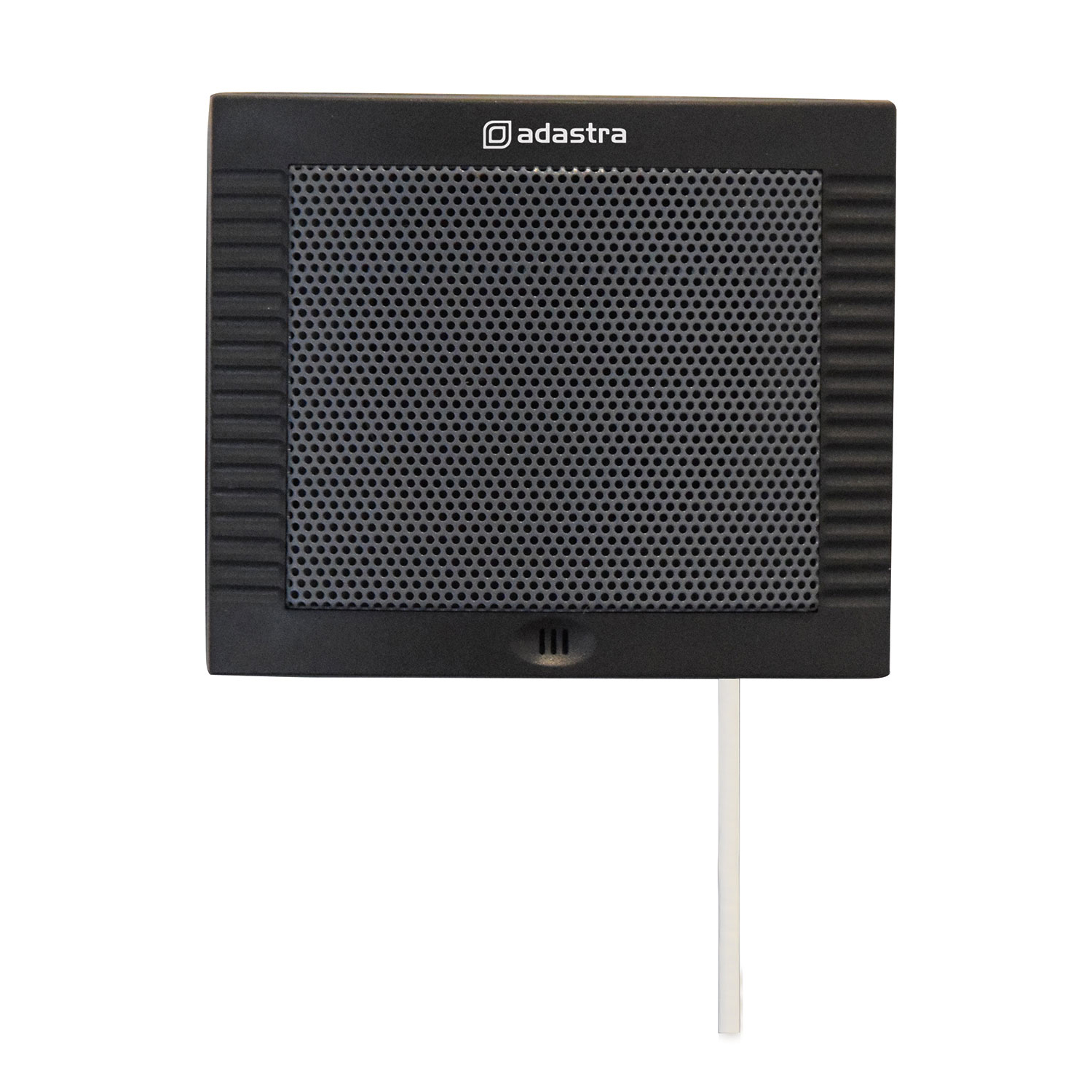

• Glass or counter mount client speakerphone
• Hands-free operation
• Volume control and signal indicator for each microphone
• 1.6m connection lead
• Power supply: 9Vdc 300mA pin negative (adapter supplied)
• Controls: 2 x volume control & power on/off

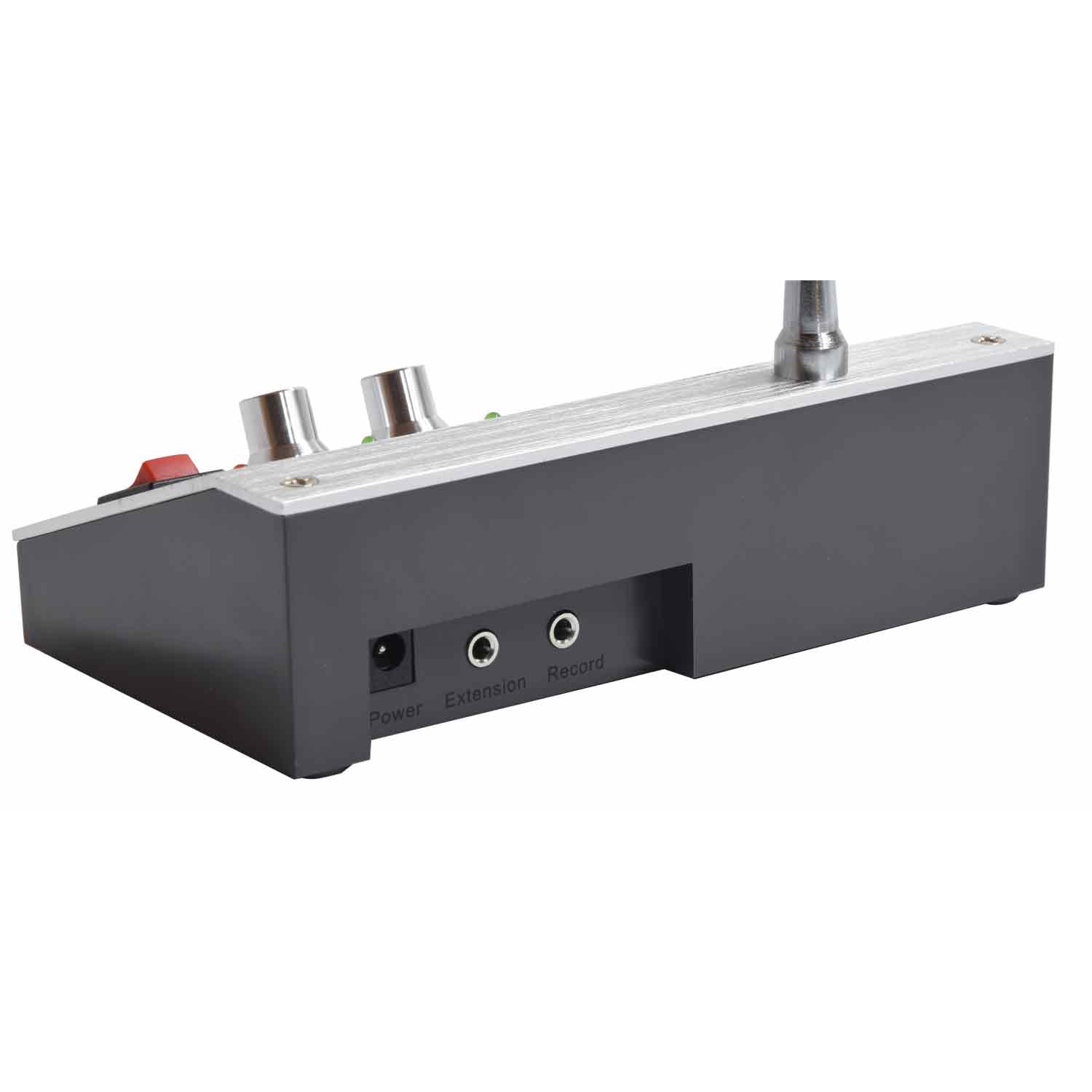

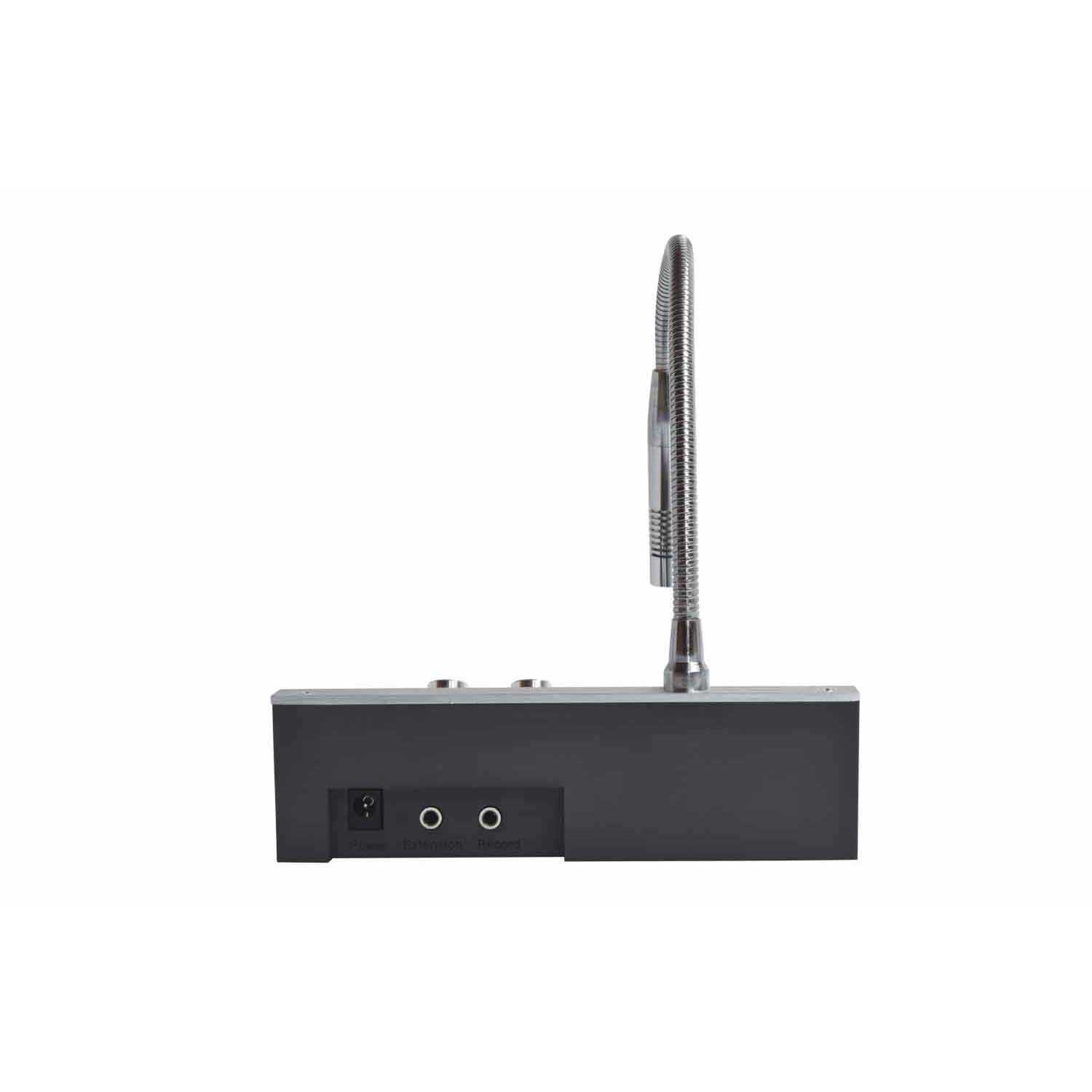

• Connectors: 3.5mm TRS speakerphone, 3.5mm stereo record out
• Lead length: 1.6m (hard-wired to speakerphone)
• Dimensions:
  Main unit: 158 x 87 x 46mm
  Microphone: 285 x 113mmØ (fixed to main unit)
  Client speakerphone: 91 x 77 x 23mm
• Weight:
  Main unit (inc. microphone): 347g
  Client speakerphone (inc. lead): 87g

System includes:

• 1 x Control unit with gooseneck microphone for staff / receptionist with mains power supply
• Combined microphone / speaker for customer / client

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
