W Audio TPX 400 Stereo Power Amplifier

Description

W Audio TPX 400 200 + 200w stereo power amplifier

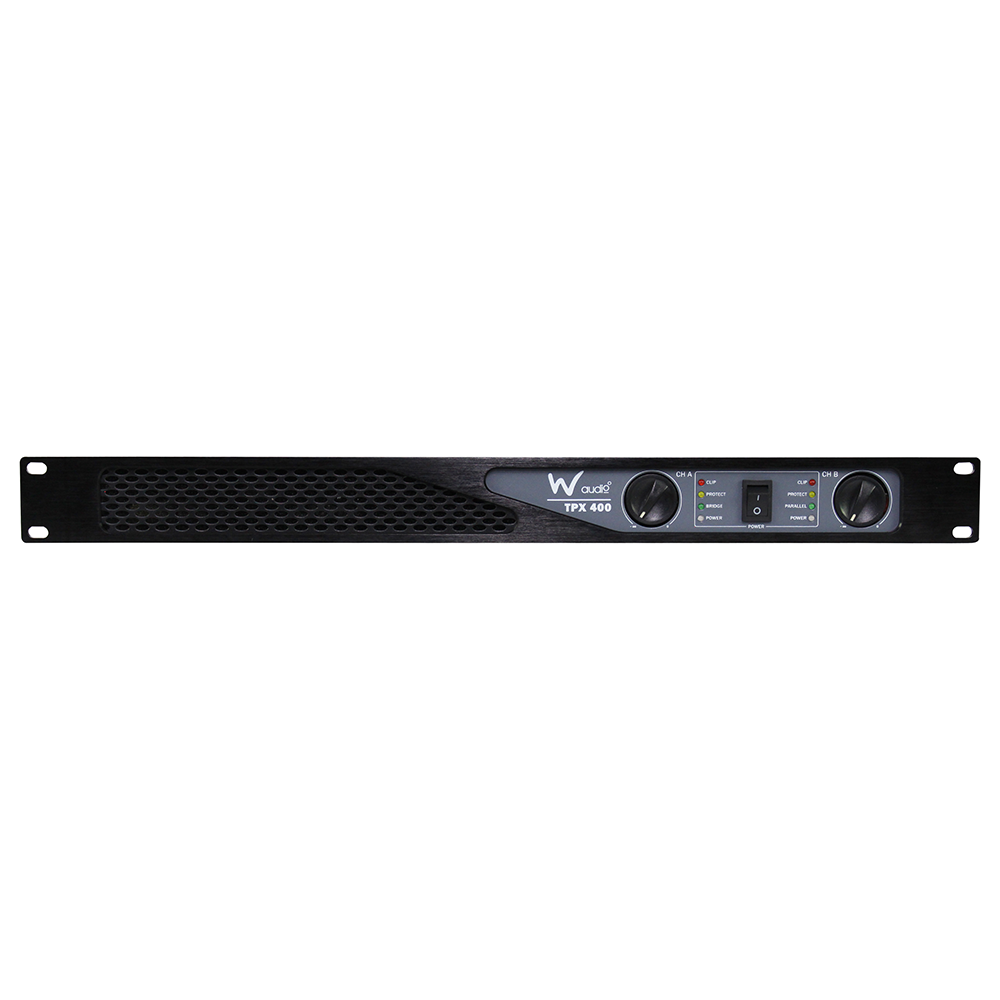

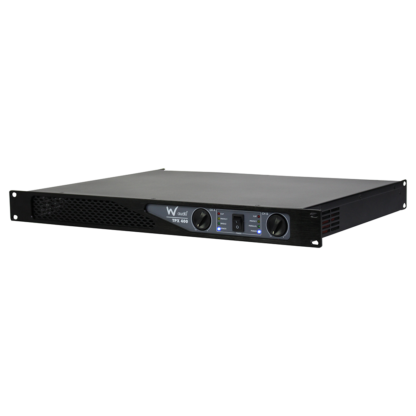

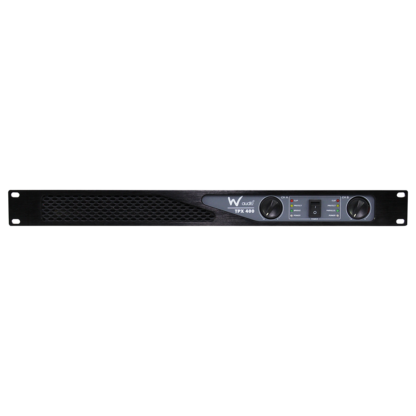

Occupying only 1 unit of space in your rack the TPX Series amplifiers deliver up to 650W of power. These lightweight amplifiers do not compromise when it comes to audio quality, using high quality components and low noise fans making them ideal for installation. All models have protection against short circuit, DC, overheating, overloading and have a soft-start delay. LEDs on the front indicate power, signal, clipping and triggering of the protection circuit.

• 2 x 200Wrms @ 4Ω
• 2 x 130Wrms @ 8Ω
• Bridge 400Wrms @ 8Ω
• Frequency response: 20Hz to 20kHz
• Input sensitivity: 0.775V
• Protection circuits: Thermal, short circuit, overload, DC fault protection and AC power supply fuse
• LED indicators: Power, protect and clip

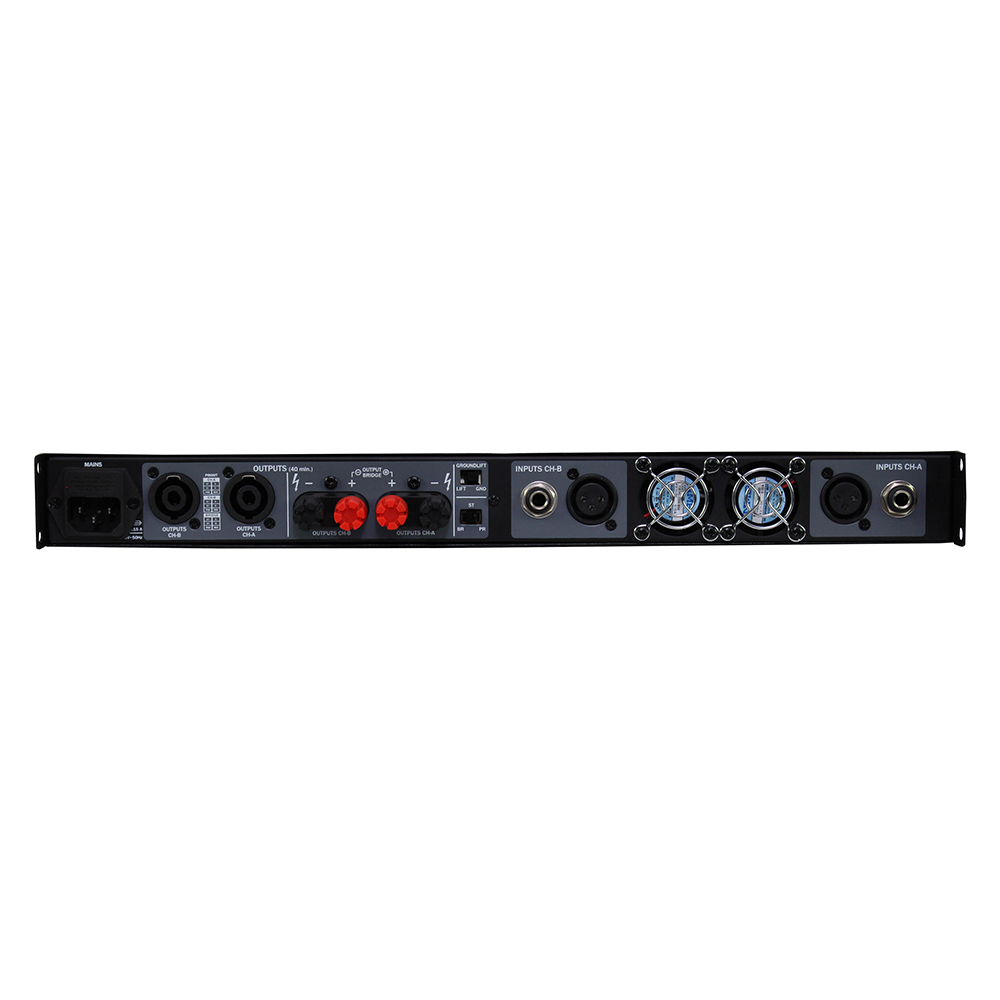

• Input connections: 1 x IEC, 2 x XLR sockets, 2 x 1/4” jack sockets
• Output connections: 2 x speakON connectors, 2 pairs of binding posts, bridge via binding post
• Additional features: Ground lift and switchable stereo, parallel and bridge
• Power supply: AC 240V/50Hz
• Dimensions: 44 x 484 x 345mm
• Weight: 7.4kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
