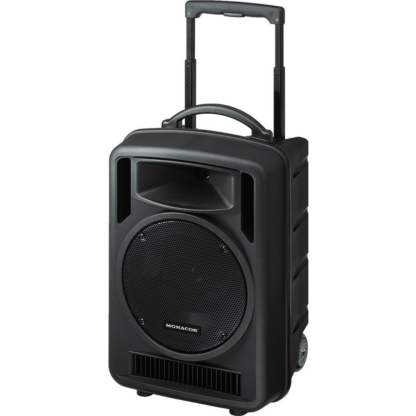

Monacor TXA-1020 120w Portable All-in-One PA System

Description

Monacor TXA-1020 120w high-power portable PA sound system with integrated 2-channel multifrequency wireless microphone receiver

• Supplied without wireless microphones
• High-performance class D version 120 W, with optimum efficiency
• Operation via mains or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
• For mobile applications, e.g. sales events, lectures, poolside
• 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
• 2-way speaker system of high power capability with a 25 cm (10″) bass speaker

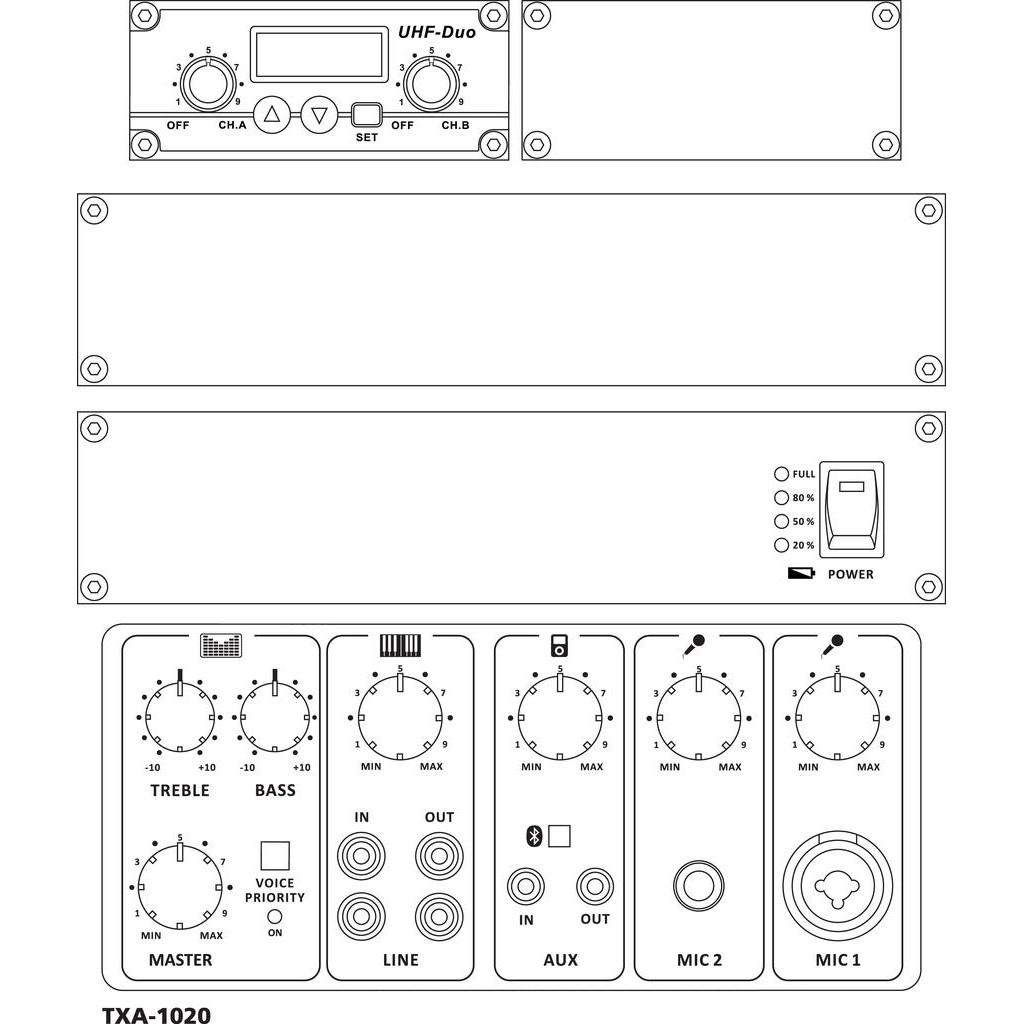

• 1 microphone input via combination jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack)
• Switchable microphone priority circuit
• 2 castors allow unit to pulled like a trolley
• Stand sleeve
• License-free in the EU & UK
• Power rating (RMS): 120 W
• Peak music power output (MAX): 170 W
• Frequency range: 20-20,000 Hz
• Wireless receiver carrier frequency: 863.1-864.9 MHz
• Wireless operating range: approx. 30 m
• Inputs: 6 mV (mic), 300 mV (line, aux)
• Equalizer, bass: ±10 dB/100 Hz, treble    ±10 dB/10 kHz
• Power supply: ˜ 230 V/50 Hz/170 VA, rechargeable battery: 2 x 12 V/4.5 Ah
• Admissible ambient temperature: 0-40 °C
• Dimensions: 360 x 580 x 320 mm
• Weight: 19.1 kg
• Connections: 1 x XLR/6.3 mm jack (mic), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out)

Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters and multifrequency transmitter module TXA-1020MT are optionally available

Not quite right for you?
Ask us to quote a custom PA sound system

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
