Monacor TXA-1022CD 120w Portable All-in-One PA System

Description

Monacor TXA-1022CD 120w high-power portable PA sound system with integrated 2-channel multifrequency wireless microphone receiver and CD player

Portable high-power amplifier system with integrated adjustable 2-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.

• High-performance class D version 120 W, with optimum efficiency
• Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
• For mobile applications, e.g. sales events, lectures
• 2 x 16 selectable UHF frequencies (863.1-864.9 MHz)
• CD player with anti-shock system, MP3 reproduction and slot-in mechanism, pitch control function
• SD card reader, USB port
• Supplied with remote control for CD player
• 1 radio transmitter for wireless audio link operation of several TXA-1020 systems
• Efficient 2-way speaker system with 25 cm (10″) bass speaker

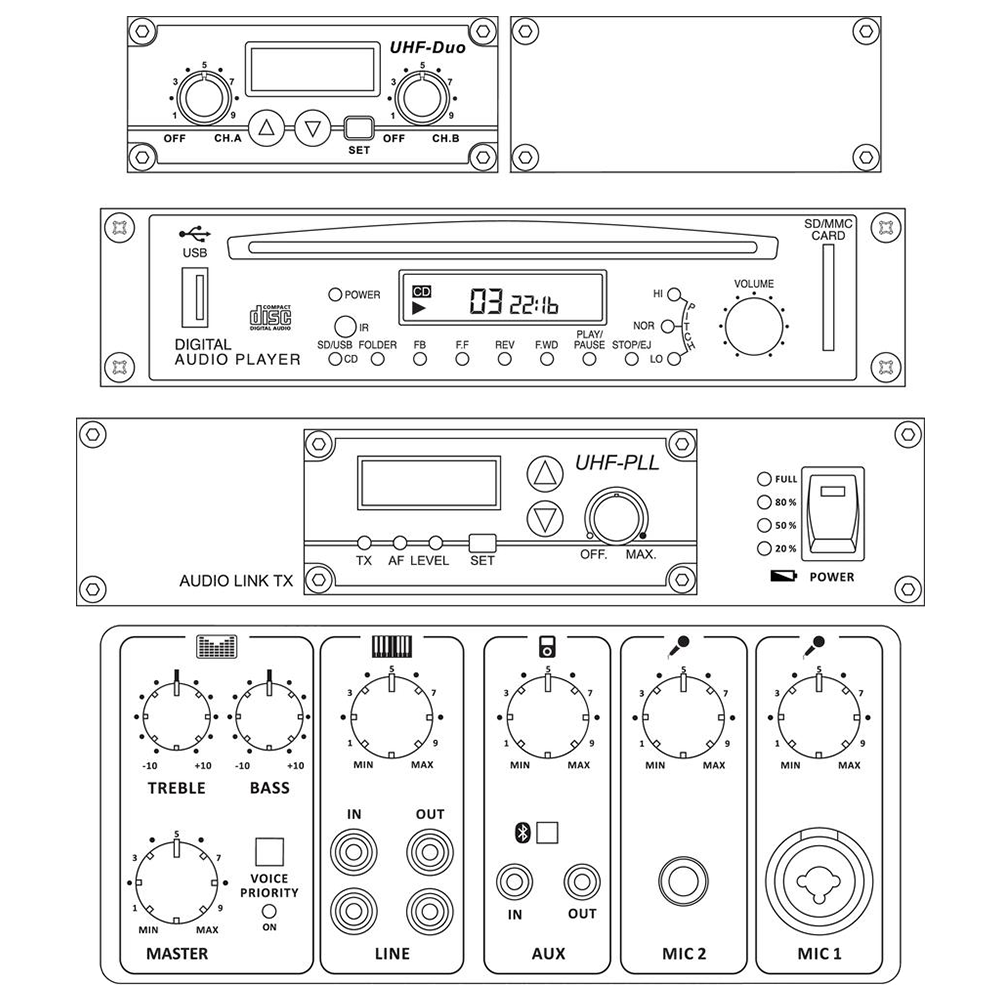

• 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
• Common master control, 2-way tone control
• 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
• Switchable microphone priority circuit

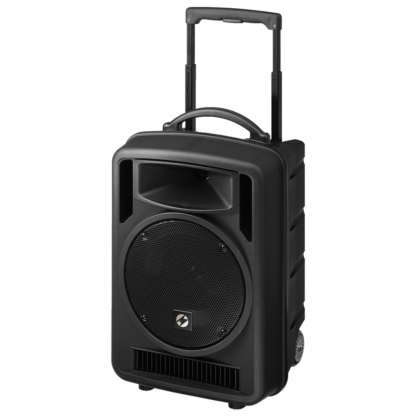

• Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
• Stand sleeve

Technical Specifications

• Rated power (PRMS): 120 W
• Peak output power: 170 W
• Frequency range: 20-20,000 Hz
• Carrier frequency: 863.1-864.9 MHz
• Operating range: ≈ 30 m
• Inputs:
  • 6 mV (mic)
  • 300 mV (line, aux)
• Link: wireless
• Equalizer:
  • Bass: ±10 dB/100 Hz
  • Treble: ±10 dB/10 kHz
• Power supply:
  • ˜ 230 V/50 Hz/170 VA,
  • Rechargeable battery: 2 x 12 V/4.5 Ah
• Admissible ambient temperature: 0-40 °C
• Dimensions: 360 x 580 x 320 mm
• Weight: 18.2 kg
• Connections:
  • 1 x XLR/6.3 mm jack (mic)
  • 1 x 6.3 mm jack (mic)
  • 1 x RCA L/R (line in)
  • 1 x 3.5 mm jack (line in)
  • 1 x RCA L/R (line out)
  • 1 x 3.5 mm jack (line out)

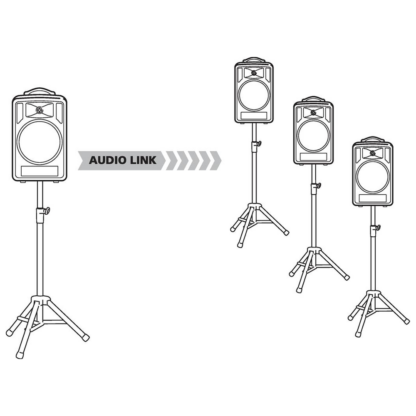

Audio link operation: The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.

License-free in the EU.

Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters are optionally available.
