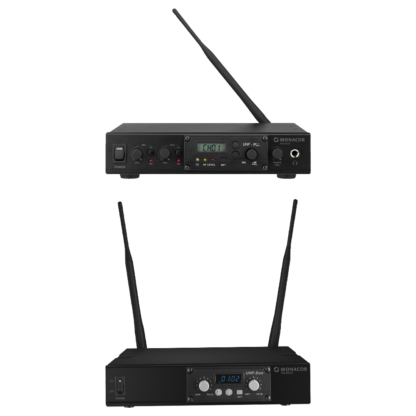

Monacor TXA-800SET Wireless Link

Description

Monacor TXA-800SET wireless audio link kit creates a wideband, 16 channel UHF wireless streaming audio link

Available as a kit which includes transmitter, receiver, RX & TX antennas, mains PSU’s – everything you need ready for use

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

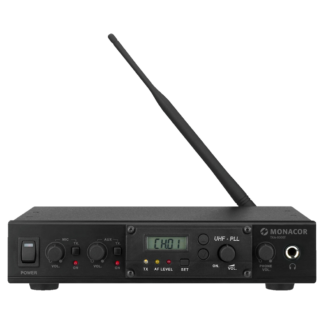

TXA-800ST 16-channel mono PLL audio transmitter on deregulated frequencies of 863-865 MHz

• Compatible with Sennheiser EW100 G1 & G2, TXA-800 & TXA-1000 series portable amplifier systems etc.
• Can be combined with the TXA-800 series receivers for use as a “tour guide system” and for all other applications in which a certain audio or voice source is to be distributed to one or more receivers
• Can be combined with the transmitters and receivers of the ATS-16 Series
• Simultaneous operation of up to 4 transmitters on different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
• 16-channel PLL transmitter
• Microphone and line audio inputs
• Matching the receivers TXA-800R, ATS-16R and portable amplifiers of the TXA-800 series and Sennheiser G1 & G2 receivers
• 16 selectable UHF frequencies (863.1-864.9mHz)
• Audio stereo line input via RCA L/R
• Balanced XLR microphone input and 6.3 mm microphone input
• Audio mono line output via RCA
• Adjustable headphone output
• Backlit LCD for channel/frequency, LEDs for carrier frequency, signal and signal peak
• Additional DC voltage output 10-15 V DC current  for connecting an additional transmitter
• Power supply via supplied plug-in PSU
• Dimensions: 215 x 50 x 210 mm
• Weight: 1.25 kg

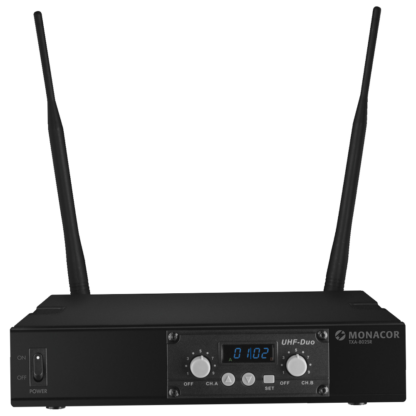

TXA-802SR 16-channel Mono PLL Audio Receiver on deregulated frequencies of 863-865 MHz

• Compatible with Sennheiser EW100 G1 & G2, TXA-800 & TXA-1000 series portable amplifier systems etc.
• Can be combined with the TXA-800 and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
• 16-channel Mono PLL Audio Transmission System, 863-865 MHz
• Can be combined with transmitters and receivers of the ATS-16 series
• Simultaneous operation of up to 4 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
• Matching the transmitters TXA-800HT, TXA-800HSE, ATS-12HT and ATS-162T
• 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
• Scan function for free channel
• Volume control
• LCD for indicating selected channel and carrier signal
• Balanced XLR output and 6.3 mm jack output
• 482 mm (19″) rack installation of 2 devices is possible with supplied mounting brackets
• Power supply via supplied plug-in PSU
• Dimensions: 215 x 50 x 210 mm
• Weight: 1.2 kg

NB – Like all media players, CD players, FM & DAB tuners and MP3 players etc. these items require an external amplifier and loudspeaker(s) to work

License-free Ch. 70 in the UK & EU
