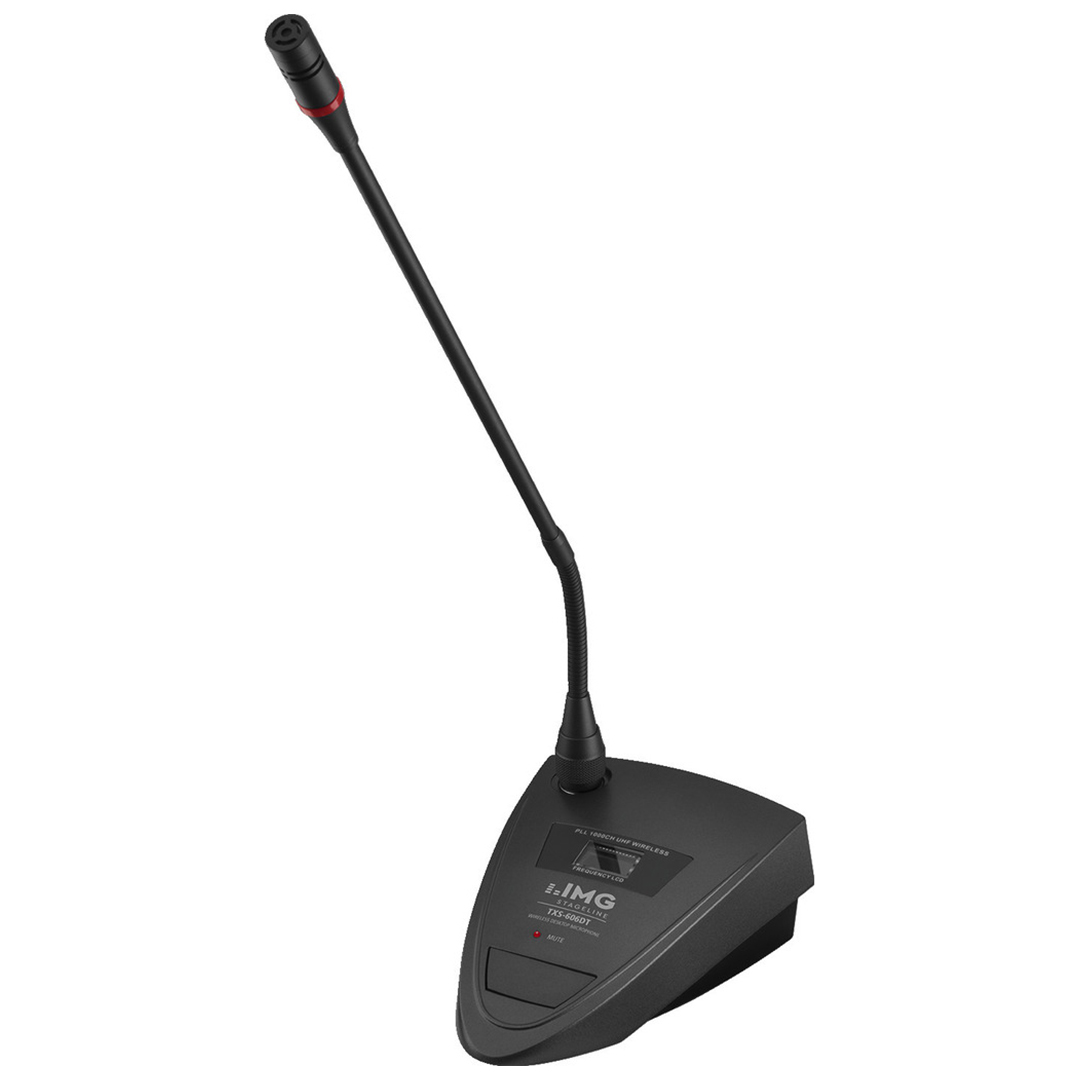

IMG Stageline TXS-606DT/2 Wireless Desk Microphone

Description

IMG Stageline TXS-606DT/2 wireless desk microphone

For use with TXS-606, TXS-626, TXS-646 and TXS-686 wireless microphone receivers only

Wireless desktop microphone with integrated multifrequency transmitter with UHF PLL technology

• Electret microphone cartridge, cardioid polar pattern
• 350 mm gooseneck, removable
• 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
• Adjustable sensitivity
• Switchable transmitting power (high: 25 mW/low: 2.5 mW)
• LCD for indicating group/channel, audio level and battery status
• Power supply via 2 x 1.5 V battery AA size (not supplied)
• Type: desktop microphone transmitter
• Transmission method: wireless
• Polar pattern: cardioid
• System: electret
• Carrier frequency range: 672.000-696.975 MHz
• Transmitting power: 25 mW/2.5 mW
• Power supply: 2 x 1.5 V battery AA size
• Operating time: > 8 h
• Audio frequency range: 30-18,000 Hz, ±3 dB
• Dimensions: 120 x 65 x 178 mm (without gooseneck)
• Weight: 600 g

This equipment requires an annual fixed site wireless microphone licence when used in the UK

Please note that a maximum of 12 x TXS-606 series wireless microphone transmitters can be used with the appropriate number of TXS-606, TXS-626, TXS-646 or TXS-686 receivers at any one time

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
