IMG Stageline TXS-606HT/2 Wireless Microphone

Description

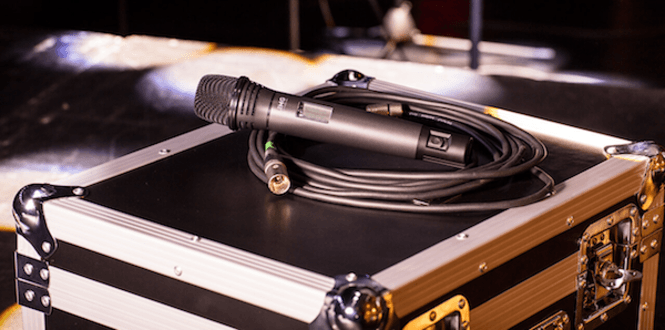

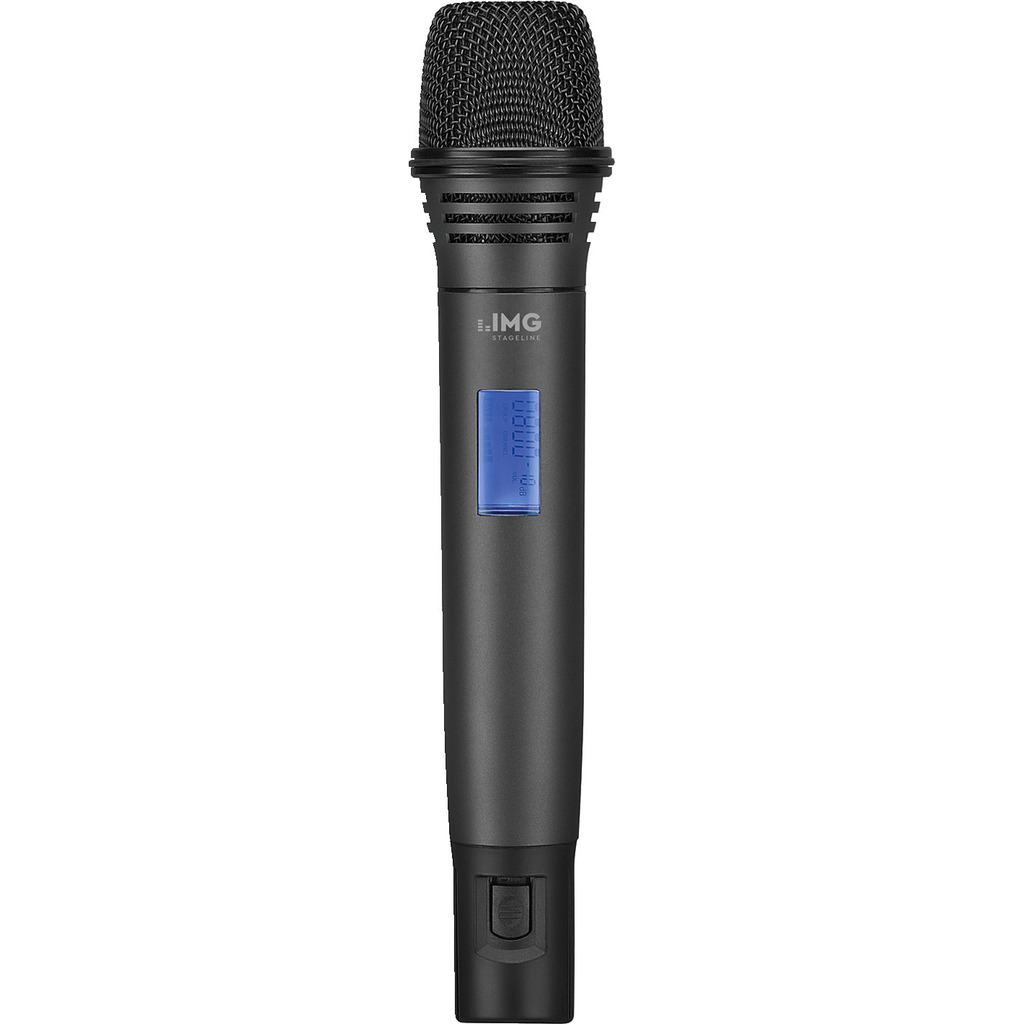

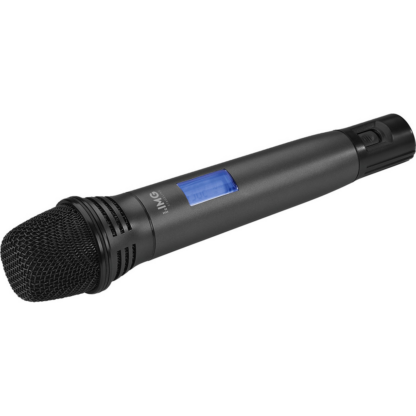

IMG Stageline TXS-606HT/2 UHF handheld wireless microphone transmitter

For use with TXS-606, TXS-626, TXS-646 and TXS-686 wireless microphone receivers only

• TXS-606LT bodyworn transmitter with tie-clip mic and 3.5mm jack socket
• TXS-606HSE bodyworn transmitter (no mic) and 3 pin mini XLR socket
• TXS-606HT handheld transmitter mic

• 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal from matching receiver
• Dynamic microphone cartridge, cardioid polar pattern
• Adjustable sensitivity
• Switchable transmitting power (high: 25 mW/low: 2.5 mW)
• LCD for indicating group/channel, audio level and battery status
• Power supply via 2 x 1.5 V battery AA size (not supplied)
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz, ±3 dB
• Admissible ambient temperature: 0-40 °C
• Type: hand-held microphone transmitter
• Transmission method: wireless
• Polar pattern: cardioid
• System: dynamic
• Power supply: 2 x 1.5 V battery AA size
• Operating time: > 8 h
• Dimensions: Ø 51 mm x 265 mm
• Weight: 312 g

This equipment requires an annual fixed site wireless microphone licence when used in the UK

Please note that a maximum of 12 x TXS-606 series wireless microphone transmitters can be used with the appropriate number of TXS-606, TXS-626, TXS-646 or TXS-686 receivers at any one time

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
