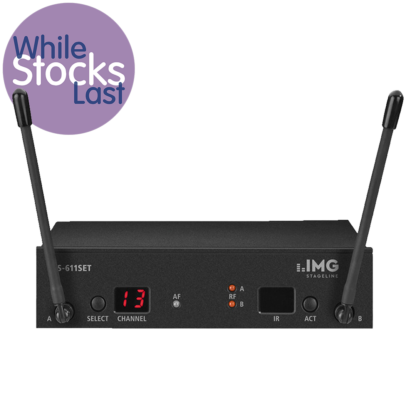

IMG Stageline TXS-611RX / TXS-631RX Wireless Microphone Receiver

Description

IMG Stageline TXS-611RX – TXS-611 / TXS-631 UHF wireless microphone receiver features 80 selectable UK license free Ch 70 frequencies – To Clear

For use with TXS-611, TXS-631 and TXS-631TX wireless microphone transmitters

• Multi-frequency UHF diversity wireless microphone PLL receiver
• True diversity UHF systems
• 80 selectable UHF deregulated channels (863-865 MHz) – license free Ch. 70 in the UK & EU
• Up to 4 systems can be used at the same time
• ACT function for transmitting the selected frequency to the hand or pocket transmitter via infrared signal
• Automatic scan to ensure you use a clear frequency
• Volume and squelch controls
• Indication of channel, antenna A/B, ACT status and AF audio level on the receiver
• Indication of channel and battery status on transmitters
• Stable metal housing on receiver for rejection of RF noise etc.
• License free in the UK & EU
• Audio frequency range: 50-18,000 Hz
• THD: < 0.5%
• Dynamic range: 120 dB
• RF S/N ratio: 105 dB
• Admissible ambient temperature: 0-40 °C
• Transmitting power: < 10 mW
• Audio signal receiver: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, balanced)
• Power supply receiver: via encl. plug-in power supply
• Width receiver: 152 mm
• Height receiver: 38 mm
• Depth receiver: 120 mm
• Weight receiver: 482 g
• Connections receiver: 1 x 6.3 mm jack, unbalanced 1 x XLR, balanced

TXS-611 / TXS-631 diversity receiver only for use with your existing microphone transmitter and power supply etc. – to replace lost, broken or faulty receivers

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
