IMG Stageline TXS-611SET Wireless Microphone System

Description

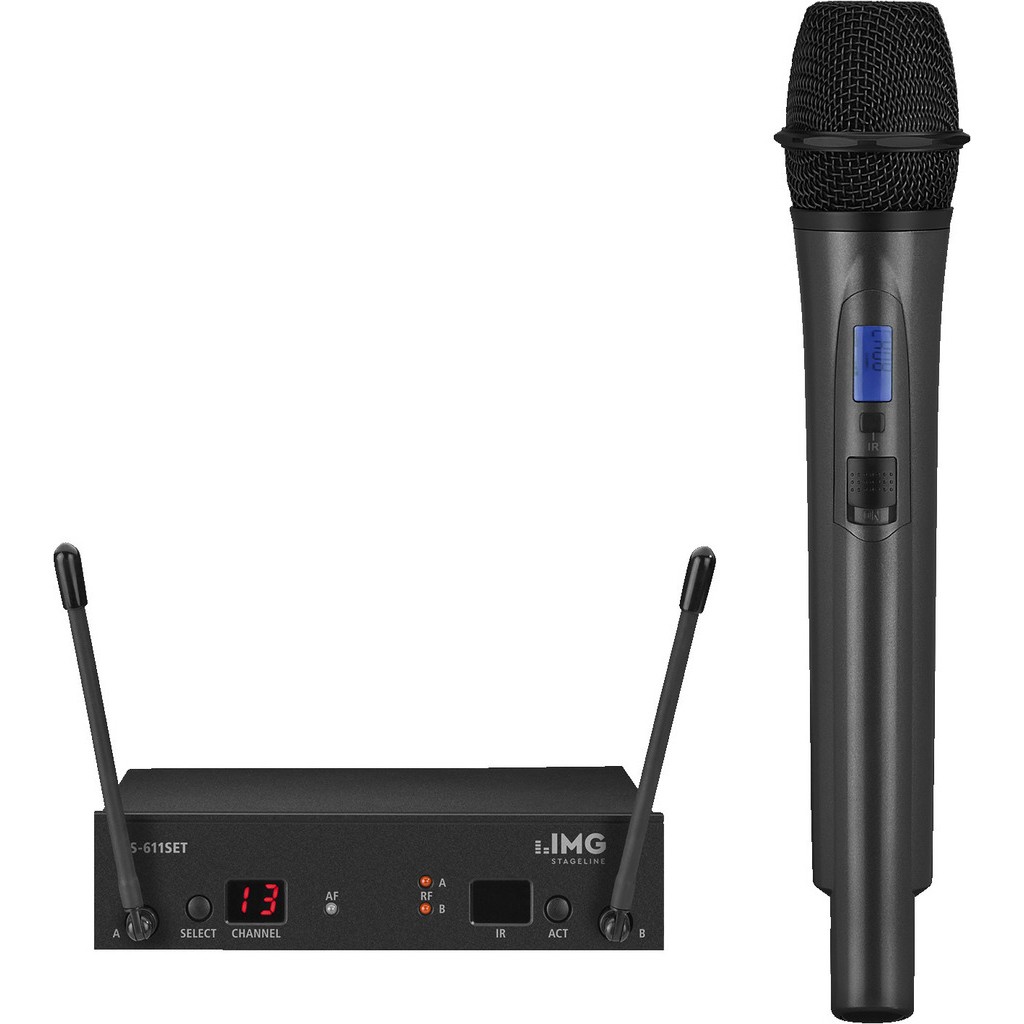

IMG Stageline TXS-611SET complete UHF diversity, multi-frequency wireless microphone system on deregulated Channel 70 with handheld transmitter

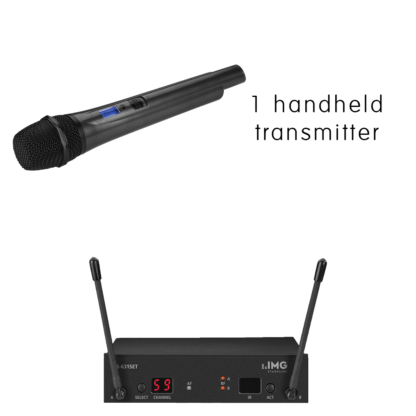

• Each system supplied with handheld wireless microphone, wireless microphone receiver and mains power supply for receiver
• License-free in the UK & EU
• True diversity UHF systems
• 80 selectable UHF deregulated channels (863-865 MHz) – license free Ch 70 in the UK & EU
• Up to 4 systems can be used at the same time
• ACT function for transmitting the selected frequency to the hand or pocket transmitter via infrared signal
• Automatic scan to ensure you use a clear frequency
• Volume and squelch controls
• Indication of channel, antenna A/B, ACT status and AF audio level on the receiver
• Indication of channel and battery status on transmitters
• Stable metal housing on receiver for rejection of RF noise etc.
• Audio frequency range: 50-18,000 Hz
• THD: < 0.5%
• Dynamic range: 120 dB
• RF S/N ratio: 105 dB
• Admissible ambient temperature: 0-40 °C
• Transmitting power: < 10 mW
• Operating range: ≈ 30 m
• Power supply transmitter: 2 x 1.5 V battery AA size
• Audio signal receiver: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, balanced)
• Power supply receiver: via encl. plug-in power supply
• Receiver dimensions: 152 x 38 x 120 mm
• Receiver weight: 482 g
• Connections receiver: 1 x 6.3 mm jack, unbalanced  1 x XLR, balanced
• Transmitter dimensions: 52 x 52 x 275 mm
• Transmitter weight: 235 g

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this and additional equipment

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
