IMG Stageline TXS-6126DT/SET Conference Wireless Microphone Set for Council Offices and Meetings

Description

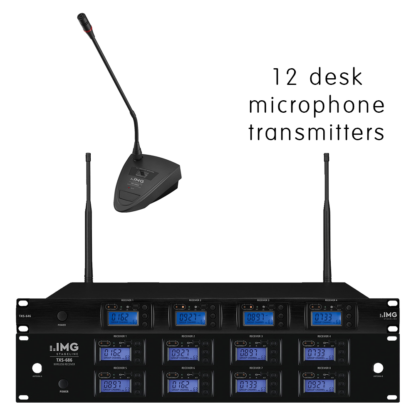

Complete IMG Stageline TXS-6126DT/SET channel 46-48 conference wireless microphone system with 12 x desk microphones with PTT switches

System includes:

• 1 x TXS-686 wireless microphone receiver
• 1 x TXS-646 wireless microphone receiver
• 12 x TXS-606DT/2 desk wireless microphone transmitters
• 12 x XLR leads

When connected to your existing sound system this wireless microphone set offers great value for money and is ideal for council chambers, board rooms, schools, colleges, stage and meeting halls

TXS-686

• 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted for each channel
• LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED level display for audio level of each channel
• Balanced XLR outputs
• 6.3mm output for mixed signal outputs
• Stable metal housing
• Supplied with PSU
• 482mm (19″) 2u rack installation
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz
• Channels: 8
• THD: < 0.5%
• Dynamic range: 100 dB
• RF S/N ratio: 105 dB
• Admissible ambient temperature: 0-40 °C
• Audio signal receiver: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, balanced)
• Power supply receiver: via encl. plug-in power supply
• Width receiver: 482 mm
• Height receiver: 90 mm
• Depth receiver: 195 mm
• Weight receiver: 4.4 kg
• Connections receiver: 8 x XLR, balanced, 1 x 6.3 mm jack, unbalanced

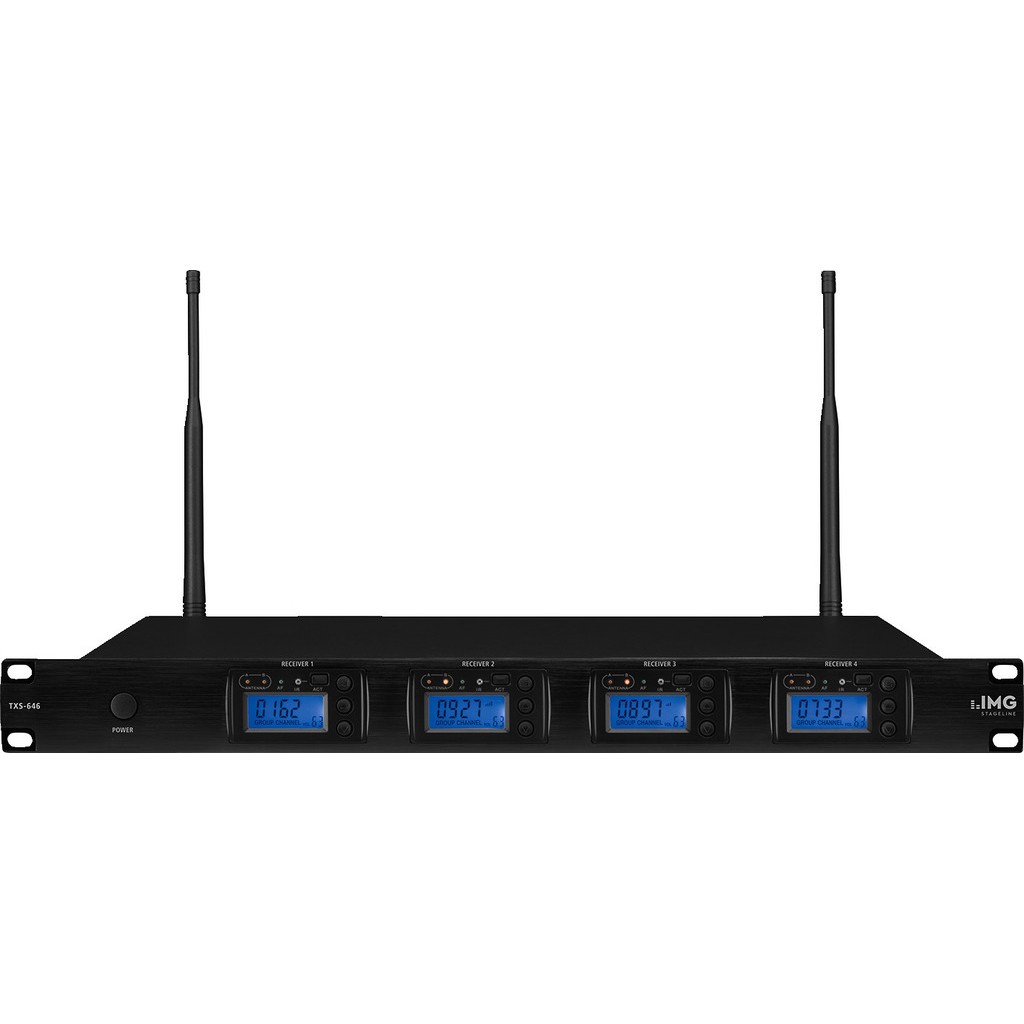

TXS-646

• 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted for each channel
• LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED level display for audio level of each channel
• Balanced XLR outputs
• 6.3mm output for mixed signal outputs
• Stable metal housing
• Supplied with PSU
• 482mm (19″) 1u rack installation
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz
• Channels: 4
• THD: < 0.5%
• Dynamic range: 100 dB
• RF S/N ratio: 105 dB
• Admissible ambient temperature: 0-40 °C
• Audio signal receiver: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, balanced)
• Power supply receiver: via encl. plug-in power supply
• Width receiver: 482 mm
• Height receiver: 45 mm
• Depth receiver: 195 mm
• Weight receiver: 2.9 kg
• Connections receiver: 4 x XLR, balanced, 1 x 6.3 mm jack, unbalanced

TXS-606DT/2

• desk microphone transmitter with goosenect and PTT switch
• Electret microphone cartridge, cardioid polar pattern
• 350 mm gooseneck, removable
• 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
• Adjustable sensitivity
• Switchable transmitting power (high: 25 mW/low: 2.5 mW)
• LCD for indicating group/channel, audio level and battery status
• Power supply via 2 x 1.5 V battery AA size (not supplied)
• Type: desktop microphone transmitter
• Transmission method: wireless
• Polar pattern: cardioid
• System: electret
• Carrier frequency range: 672.000-696.975 MHz
• Transmitting power: 25 mW/2.5 mW
• Power supply: 2 x 1.5 V battery AA size
• Operating time: > 8 h
• Audio frequency range: 30-18,000 Hz, ±3 dB
• Dimensions: 120 x 65 x 178 mm (without gooseneck)
• Weight: 600 g

Sound Services deliver this conference wireless microphone set without extra charge to most mainland UK addresses

This equipment requires an annual fixed site wireless microphone licence when used in the UK

Wireless microphone systems require knowledge of OFCOM licensing and the working practices and requirements when using multiple wireless microphones simultaneously and systems should be installed and set-up by experienced users

Please note that a maximum of 12 x TXS-606 series wireless microphone transmitters can be used with the appropriate number of TXS-606, TXS-626, TXS-646 or TXS-686 receivers at any one time

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
