IMG Stageline TXS-646HT/SET Wireless Microphone System

Description

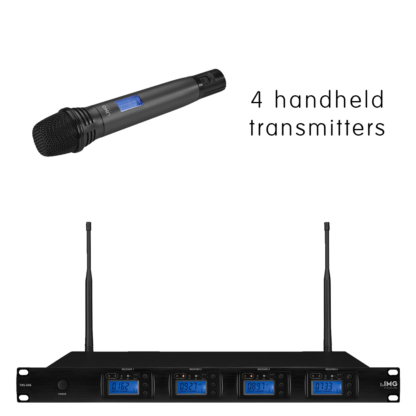

Complete IMG Stageline TXS-646HT/SET channel 46-48 bodyworn wireless microphone system with 4 x handheld microphones

System includes:

• 1 x TXS-646 receiver
• 4 x TXS-606HT/2 handheld transmitters
• 4 x XLR leads

This wireless microphone system offers great value for money and is ideal for schools, colleges, stage, amateur dramatics, entertainers and smaller theatres

TXS-646

• 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606HSE/2, TXS-606LT/2 or hand-held microphone TXS-606HT/2 via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted for each channel
• LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED level display for audio level of each channel
• Balanced XLR outputs
• 6.3mm output for mixed signal outputs
• Stable metal housing
• Supplied with PSU
• 482mm (19″) 1u rack installation
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz
• Channels: 4
• THD: < 0.5%
• Dynamic range: 100 dB
• RF S/N ratio: 105 dB
• Admissible ambient temperature: 0-40 °C
• Audio signal receiver: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, balanced)
• Power supply receiver: via encl. plug-in power supply
• Width receiver: 482 mm
• Height receiver: 45 mm
• Depth receiver: 195 mm
• Weight receiver: 2.9 kg
• Connections receiver: 4 x XLR, balanced, 1 x 6.3 mm jack, unbalanced

TXS-606HT/2

• 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT/2, TXS-606HSE/2 or hand-held microphone TXS-606HT/2 via infrared signal from matching receiver
• Dynamic microphone cartridge, cardioid polar pattern
• Switchable transmitting power (high: 25 mW/low: 2.5 mW)
• LCD for indicating channel, audio level and battery status
• Carrier frequency range: 606.500-613.500 MHz
• Audio frequency range: 30-18,000 Hz, ±3 dB
• Dimensions: Ø 51 mm x 265 mm
• Weight: 312 g

This equipment requires an annual fixed site wireless microphone licence when used in the UK

Please note that a maximum of 12 x TXS-606 series wireless microphone transmitters can be used with the appropriate number of TXS-606, TXS-626, TXS-646 or TXS-686 receivers at any one time

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
