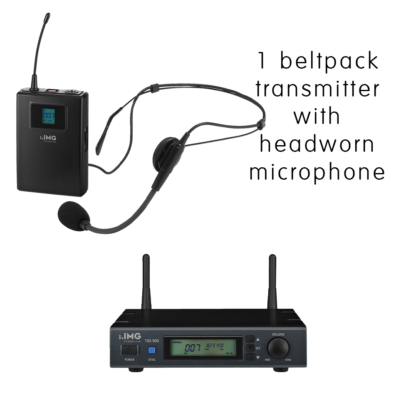

IMG Stageline TXS-900HSE-80/SET Wireless Microphone System

Description

IMG Stageline TXS-900 single UHF multifrequency wireless microphone receiver with TXS-900HSE bodyworn transmitter and headworn microphone

This innovative wireless microphone system works in both deregulated license free Ch 70 and licensable Ch 65 – you will need a Ch 38 license from Ofcom when using Ch 65

Up to 12 channels may be used at the same time

System includes:

• 1 x TXS-900 receiver
• 1 x TXS-900HSE beltpack transmitter
• 1 x HSE-80 headband microphone
• 1 x XLR lead

TXS-900

• 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
• 442 selectable channels
• Intermodulation-free presets, 4 groups with 8 channels each
• 12 intermodulation-free channels max. can be used in parallel (autoscan)
• SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
• Autoscan with intermodulation detection
• True diversity system with removable antennas (BNC connection)
• Pilot tone squelch
• Volume and squelch controls
• LCD for indicating group/channel, frequency, RF receiving level, AF audio level
• XLR output (balanced) and 6.3 mm output (unbalanced) for each channel, switchable mic/line
• 6.3 mm output for mixed signal (line)
• Receiver has obust metal housing
• Supplied with PSU for receiver
• 482 mm (19″) rack installation of receiver using supplied mounting brackets
• Audio frequency range: 80-18,000 Hz
• THD: < 1%
• Dynamic range: > 100 dB
• RF S/N ratio: > 100 dB
• Admissible ambient temperature: 0-40 °C
• Audio signal receiver: line: 75 mV, mic: 7 mV (jack, unbalanced) line: 150 mV, mic: 15 mV (XLR, balanced)
• Width receiver: 200 mm
• Height receiver: 42 mm
• Depth receiver: 183 mm
• Weight receiver: 1.1 kg
• Connections receiver: 1 x XLR, balanced, 1 x 6.3 mm jack, unbalanced

TXS-900HSE

• 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
• SYNC function for the synchronisation with receivers TXS-900 and TXS-920
• Mute function
• Sensitivity can be adjusted in 3 steps
• LCD for indicating channel and battery status
• Belt clip
• Power supply via 2 x 1.5 V battery AA size (not supplied)
• Audio frequency range: 80-18,000 Hz
• Operating time: > 15 h
• Admissible ambient temperature: 0-40 °C
• Transmitting power: 10 mW
• Power supply transmitter: 2 x 1.5 V battery AA size
• Width transmitter: 65 mm
• Height transmitter: 110 mm
• Depth transmitter: 25 mm
• Weight transmitter: 90 g
• Connections transmitter: 1 x 3-pole mini XLR

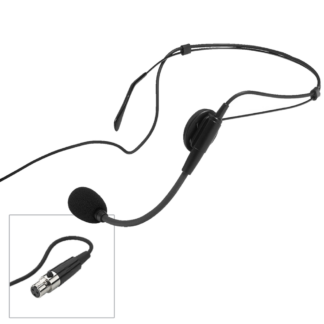

HSE-80

• Microphone boom is worn on the left side of your face
• For vocal and speech applications
• Very comfortable to wear
• Secure fit also during extreme applications such as aerobics
• High-quality electret cartridge
• Type: headband microphone
• Transmission method: cable
• Polar pattern: cardioid
• System: electret
• Audio frequency range: 100-12,000 Hz
• Nominal impedance: 2.2 kΩ
• Sensitivity: 8.5 mV/Pa
• Maximum sound pressure: 110 dB
• Power supply: DC current  2-10 V
• Admissible ambient temperature: 0-40 °C
• Weight: 40 g
• Cable: 0.8 m

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
