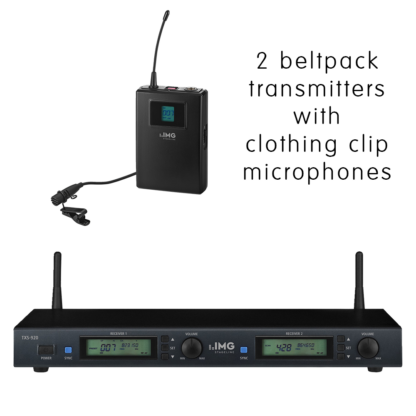

IMG Stageline TXS-920 twin UHF multifrequency wireless microphone receiver with 2 x TXS-900HSE bodyworn transmitters and 2 x clothing clip microphones
This innovative wireless microphone system works in both deregulated license free Ch 70 and licensable Ch 65 – you will need a Ch 38 license from Ofcom when using Ch 65
Up to 12 channels may be used at the same time
System includes:
- 1 x TXS-900 receiver
- 2 x TXS-900HSE beltpack transmitter
- 2 x ECM-402L clothing clip microphone
- 2 x XLR leadtwin wireless mic

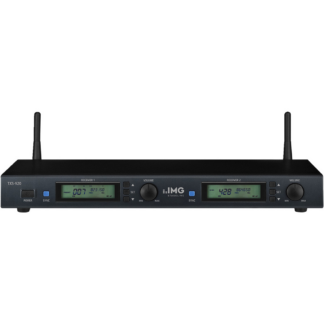

TXS-920
- 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
- 442 selectable channels
- Intermodulation-free presets, 4 groups with 8 channels each
- 12 intermodulation-free channels max. can be used in parallel (autoscan)
- SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
- Autoscan with intermodulation detection
- True diversity system with removable antennas (BNC connection)
- Pilot tone squelch
- Volume and squelch controls
- LCD for indicating group/channel, frequency, RF receiving level, AF audio level
- XLR output (balanced) and 6.3 mm output (unbalanced) for each channel, switchable mic/line
- 6.3 mm output for mixed signal (line)
- Receiver has robust metal housing
- Supplied with PSU for receiver
- 482 mm (19″) rack installation of receiver using supplied mounting brackets
- Audio frequency range: 80-18,000 Hz
- Channels: 2
- THD: < 1%
- Dynamic range: > 100 dB
- RF S/N ratio: > 100 dB
- Admissible ambient temperature: 0-40 °C
- Audio signal receiver: line: 75 mV, mic: 7 mV (jack, unbalanced) line: 150 mV, mic: 15 mV (XLR, balanced) 75 mV (mix)
- Width receiver: 420 mm
- Height receiver: 42 mm
- Depth receiver: 183 mm
- Weight receiver: 2.3 kg
- Connections receiver: 2 x XLR, balanced, 2 x 6.3 mm jack, unbalanced 1 x 6.3 mm jack, unbalanced (mix)
TXS-900HSE
- 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
- SYNC function for the synchronisation with receivers TXS-900 and TXS-920
- Mute function
- Sensitivity can be adjusted in 3 steps
- LCD for indicating channel and battery status
- Belt clip
- Power supply via 2 x 1.5 V battery AA size (not supplied)
- Audio frequency range: 80-18,000 Hz
- Operating time: > 15 h
- Admissible ambient temperature: 0-40 °C
- Transmitting power: 10 mW
- Power supply transmitter: 2 x 1.5 V battery AA size
- Width transmitter: 65 mm
- Height transmitter: 110 mm
- Depth transmitter: 25 mm
- Weight transmitter: 90 g
- Connections transmitter: 1 x 3-pole mini XLR
ECM-402L
- Clothing-clip microphones are best worn centrally some 15 to 20cm below your mouth
- Fitted is fitted with a 3 pin mini XLR plug for IMG Stageline HSE, Gemini 64ch, AKG, Nady, W Audio Quartet, LD Systems and Samson wireless microphone transmitters etc.
- Electret tie clip microphone miniature version
- Microphone cartridge of cardioid characteristic
- Removable clip and 1.2 m connection cable
- Type: tie clip microphone
- Transmission method: cable
- Polar pattern: cardioid
- System: electret
- Audio frequency range: 70-15,000 Hz
- Nominal impedance: 1.5 kΩ
- Sensitivity: 7 mV/Pa
- Maximum sound pressure: 120 dB
- Power supply: via power supply adapter
- Admissible ambient temperature: 0-40 °C
- Dimensions: Ø 7 mm x 22 mm
- Weight: 4 g
- Cable: 1.2 m
- Connection: 3-pole mini XLR
Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa
Wireless microphone systems need to be connected to a public address PA sound system to work
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
