IMG Stageline TXS-920HT/SET Wireless Microphone System

Description

IMG Stageline TXS-920 single UHF multifrequency wireless microphone receiver with 2 x TXS-900HT handheld transmitter

This innovative wireless microphone system works in both deregulated license free Ch 70 and licensable Ch 65 – you will need a Ch 38 license from Ofcom when using Ch 65

Up to 12 channels may be used at the same time

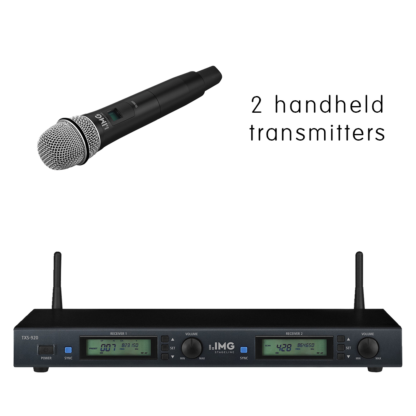

System includes:

• 1 x TXS-900 receiver
• 2 x TXS-900HT handheld transmitters
• 2 x XLR leads

TXS-920

• 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
• 442 selectable channels
• Intermodulation-free presets, 4 groups with 8 channels each
• 12 intermodulation-free channels max. can be used in parallel (autoscan)
• SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
• Autoscan with intermodulation detection
• True diversity system with removable antennas (BNC connection)
• Pilot tone squelch
• Volume and squelch controls
• LCD for indicating group/channel, frequency, RF receiving level, AF audio level
• XLR output (balanced) and 6.3 mm output (unbalanced) for each channel, switchable mic/line
• 6.3 mm output for mixed signal (line)
• Receiver has robust metal housing
• Supplied with PSU for receiver
• 482 mm (19″) rack installation of receiver using supplied mounting brackets
• Audio frequency range: 80-18,000 Hz
• Channels: 2
• THD: < 1%
• Dynamic range: > 100 dB
• RF S/N ratio: > 100 dB
• Admissible ambient temperature: 0-40 °C
• Audio signal receiver: line: 75 mV, mic: 7 mV (jack, unbalanced) line: 150 mV, mic: 15 mV (XLR, balanced) 75 mV (mix)
• Width receiver: 420 mm
• Height receiver: 42 mm
• Depth receiver: 183 mm
• Weight receiver: 2.3 kg
• Connections receiver: 2 x XLR, balanced, 2 x 6.3 mm jack, unbalanced 1 x 6.3 mm jack, unbalanced (mix)

TXS-900H

• Hand-held microphone with integrated multifrequency transmitter with UHF PLL technology
• Cardioid condenser microphone cartridge
• 2 frequency ranges (E band: 823-832 MHz – channel 38 license required and 863-865 MHz – license free)
• SYNC function for the synchronisation with receivers TXS-900 and TXS-920
• Mute function
• LCD for indicating channel and battery status
• Power supply via 2 x 1.5 V battery AA size (not supplied)
• Polar pattern: cardioid
• Transmitting power: 10 mW
• Power supply: 2 x 1.5 battery AA size
• Operating time: > 15 h
• Audio frequency range: 80-18,000 Hz
• Admissible ambient temperature: 0-40 °C
• Dimensions: Ø 53 mm x 260 mm
• Weight: 250 g

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
