ZZiPP TXZZ640 Wireless Microphone System

Description

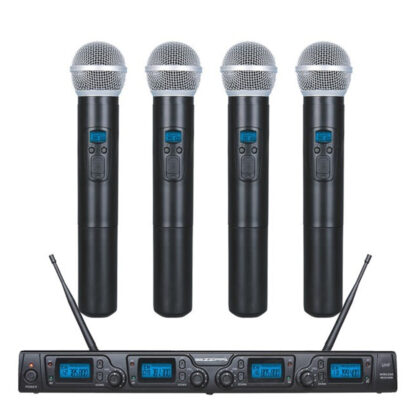

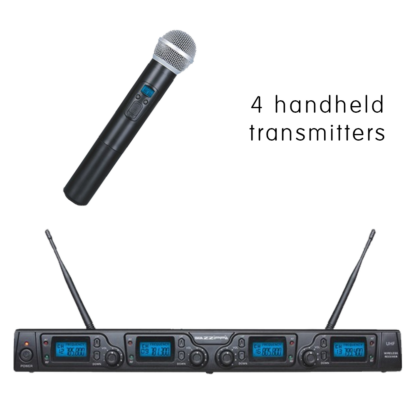

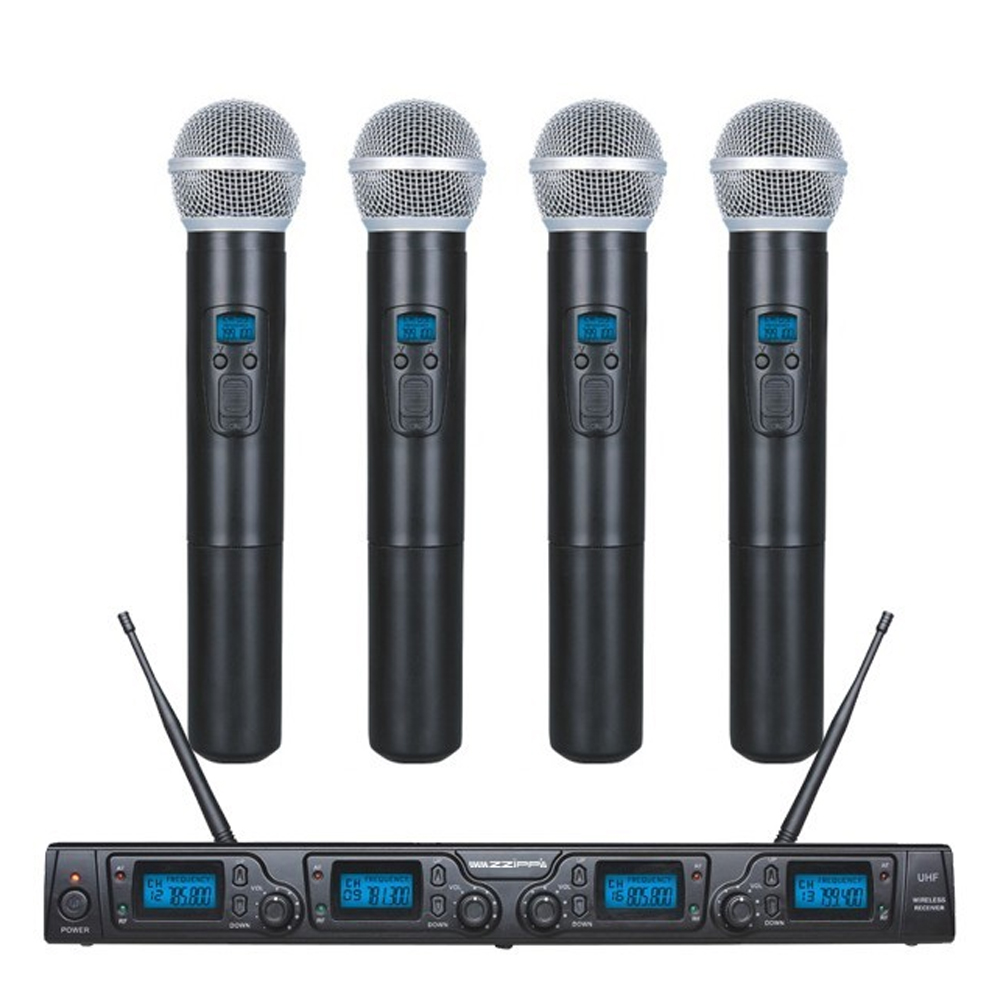

ZZiPP TXZZ640 4 way 16 channel UHF wireless microphone system with 4 x handheld transmitters

• 4 channel system
• 16 UHF channels controlled by the PHL-Synthesized system
• Frequency range: 673.000 – 696.775 MHz
• TXZZ640 handheld wireless transmitters
• Double squelch circuit to increase efficiency and linearity
• Efficient construction with low energy consumption
• High extension antennas to increase the operating distance

Equipment:

• 1 x 4 way 16-channel UHF receiver
• 4 x TXZZ640 handheld wireless transmitters
• 1 x Audio cable
• 1 x Power supply
• 8 x 1.5V AA batteries
• 1 x Instruction manual

System specifications:

• Battery charge may limit the operating range
• Carrier frequency range: 673.00 – 696.775 MHz
• Frequency response: 100 -18000 Hz
• THD: <1%
• Operating temperature: -29 – 74C
• S / N ratio: >70dB
• Output level: 0-300mV
• Sensitivity: -105dB
• Quad Receiver Dimensions: 394 x 205 x 52mm

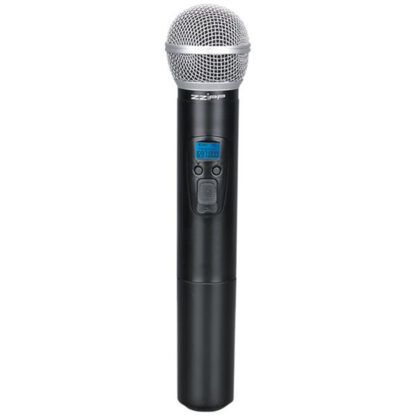

Handheld Transmitter:

• Modulation: FM
• RF out: >10dBm
• Maximum deviation: +/- 70KHz
• Power supply: 2 x 1.5V AA batteries
• Dimensions: 250 x 51 x 51mm

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.

Please note that a maximum of 6 x TXZZ622 or 3 x TXZZ640 / TXZZ642 wireless microphone systems can be used with a maximum of 12 x TXZZ640 handheld or TXZZ642 bodypack wireless transmitters at any one time.

Wireless microphone systems need to be connected to a public address PA sound system to work.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
