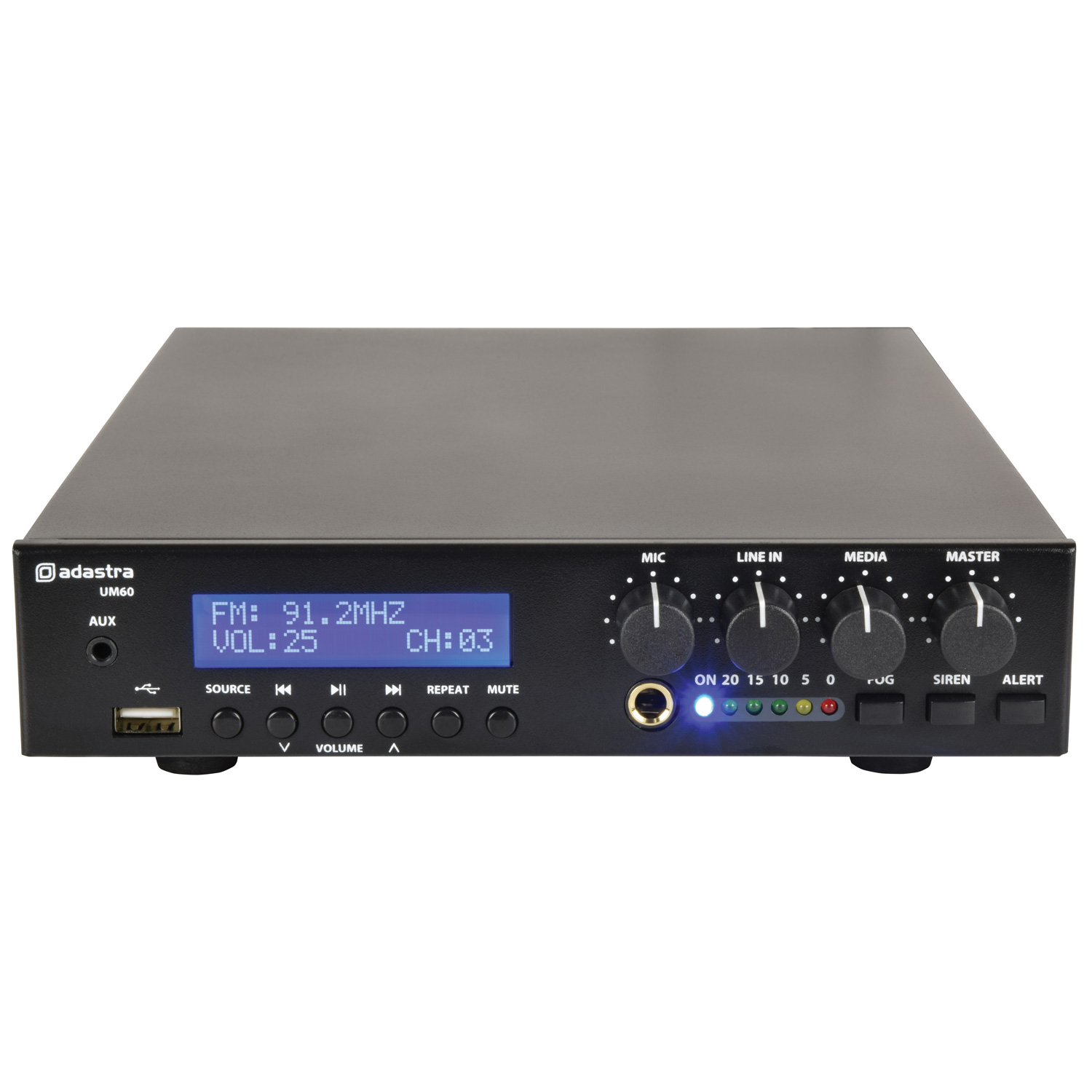

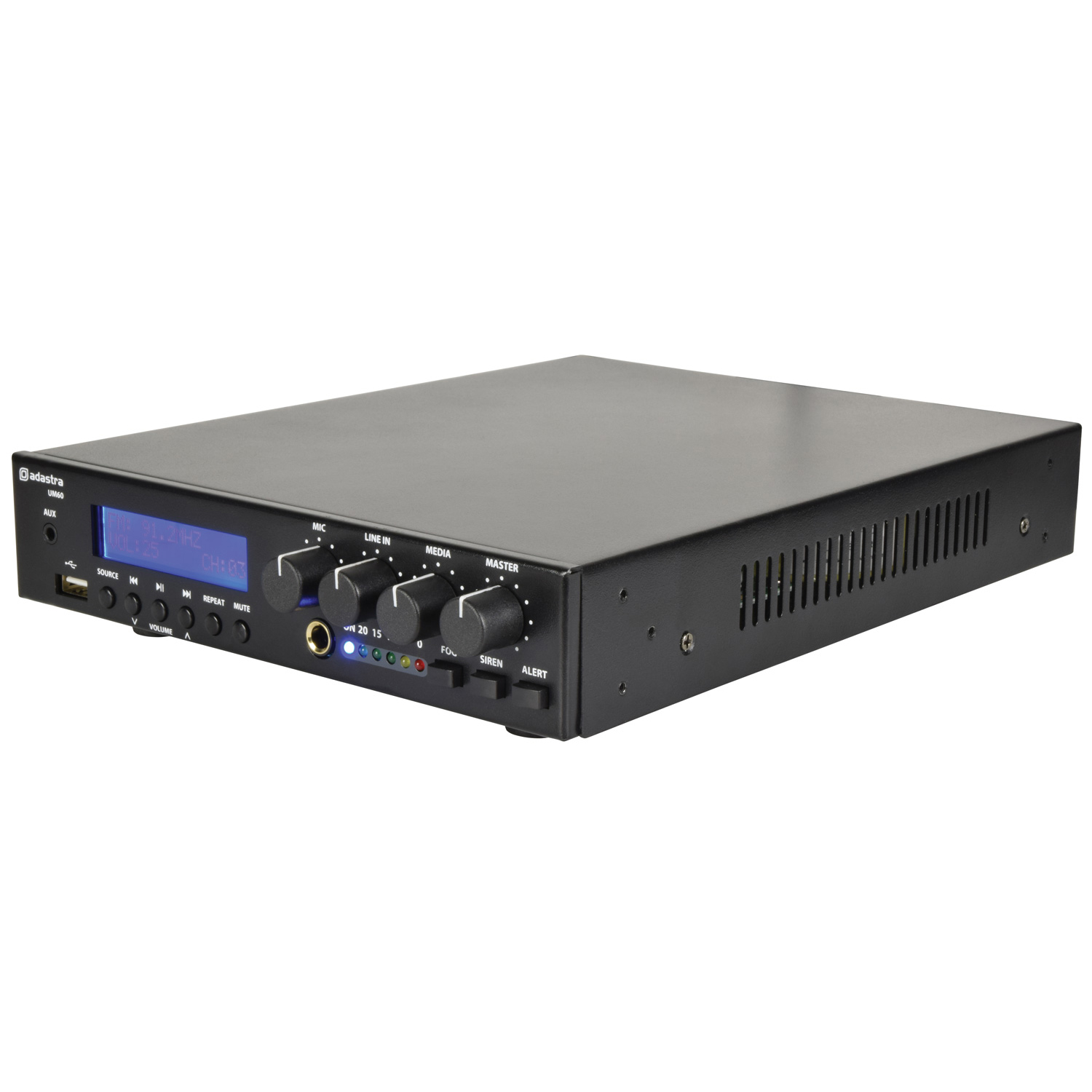

Adastra UM60 Compact Mixer Amplifier with Bluetooth

Description

Adastra UM60 60w 100v line and 8 Ohm ultra-compact mixer amplifier with Bluetooth and media player

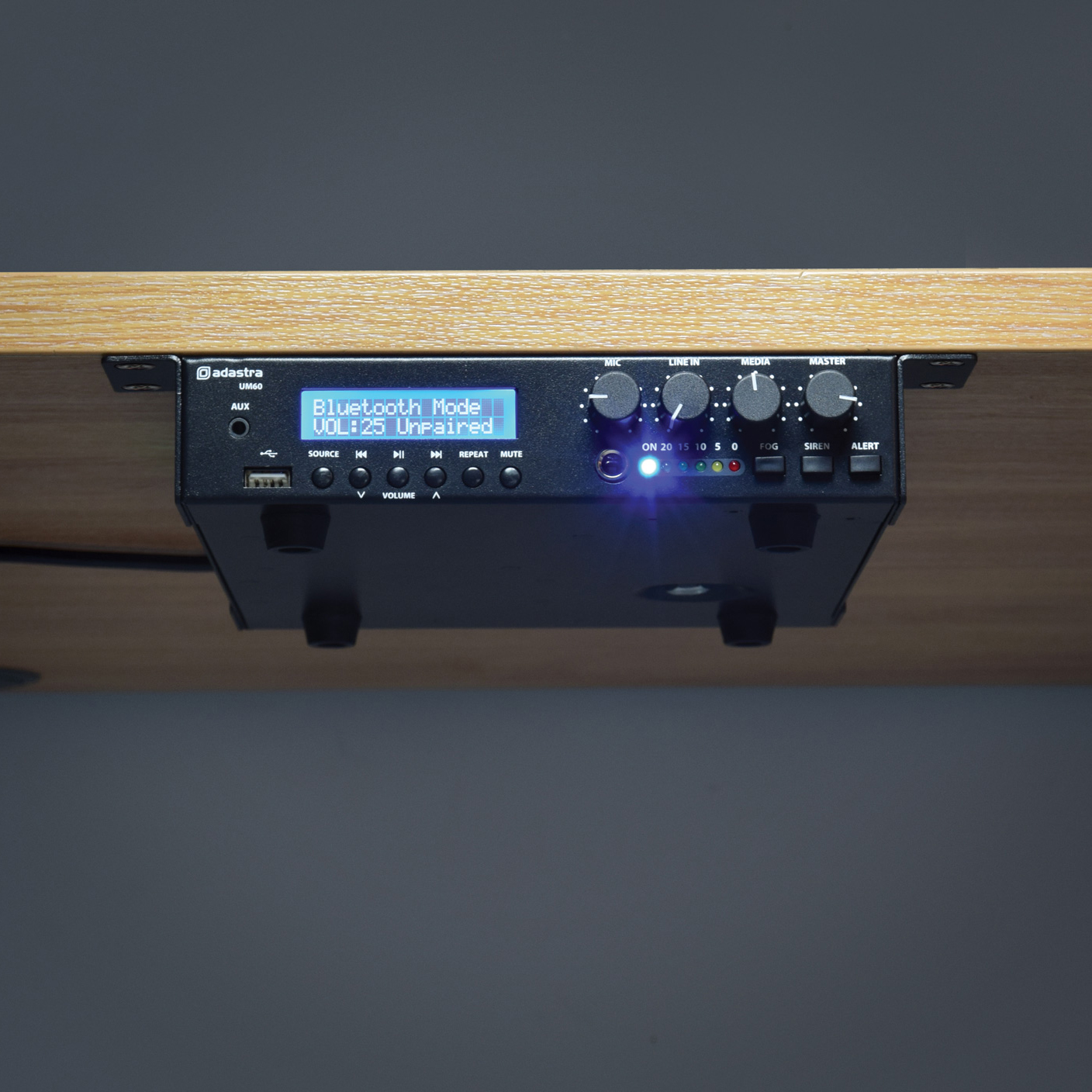

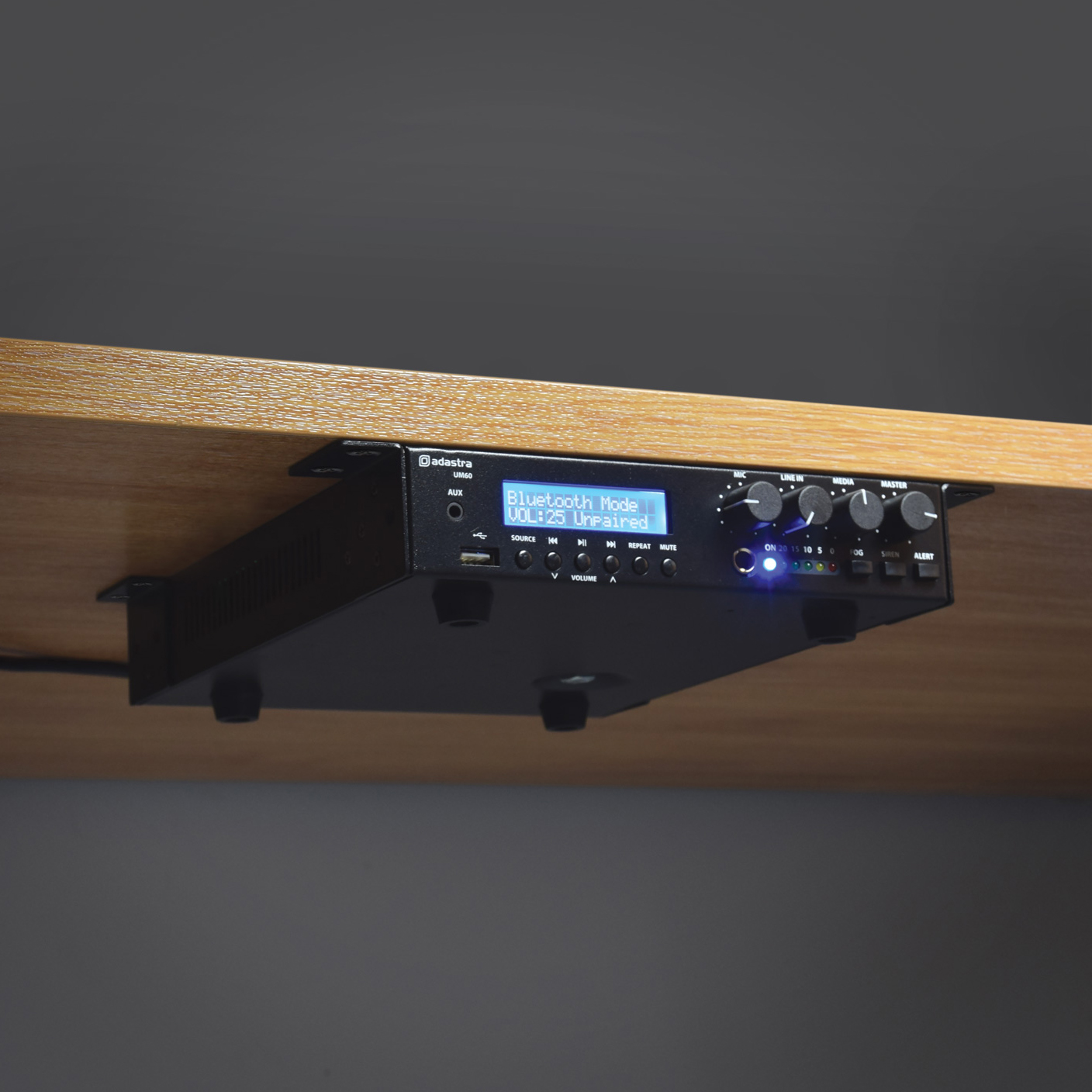

100V line mixer amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8Ω speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19″ rack space. Designed as a versatile solution for small to medium PA installations.

• Do not connect more that one 8Ω loudspeaker to the 8Ω output on this amplifier
• Ultra compact form factor
• Efficient class D amplifier design
• Internal USB/FM/BT audio player – PLEASE NOTE that for good FM reception an external FM aerial will be required
• 100V line or 8 Ohms operation
• Power supply: 170-264Vac, 50Hz (IEC)
• Amplifier : construction: Class D + transformer output
• Audio source: Internal USB/FM/BT player
• Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
• Line output: 2 x RCA (mono)

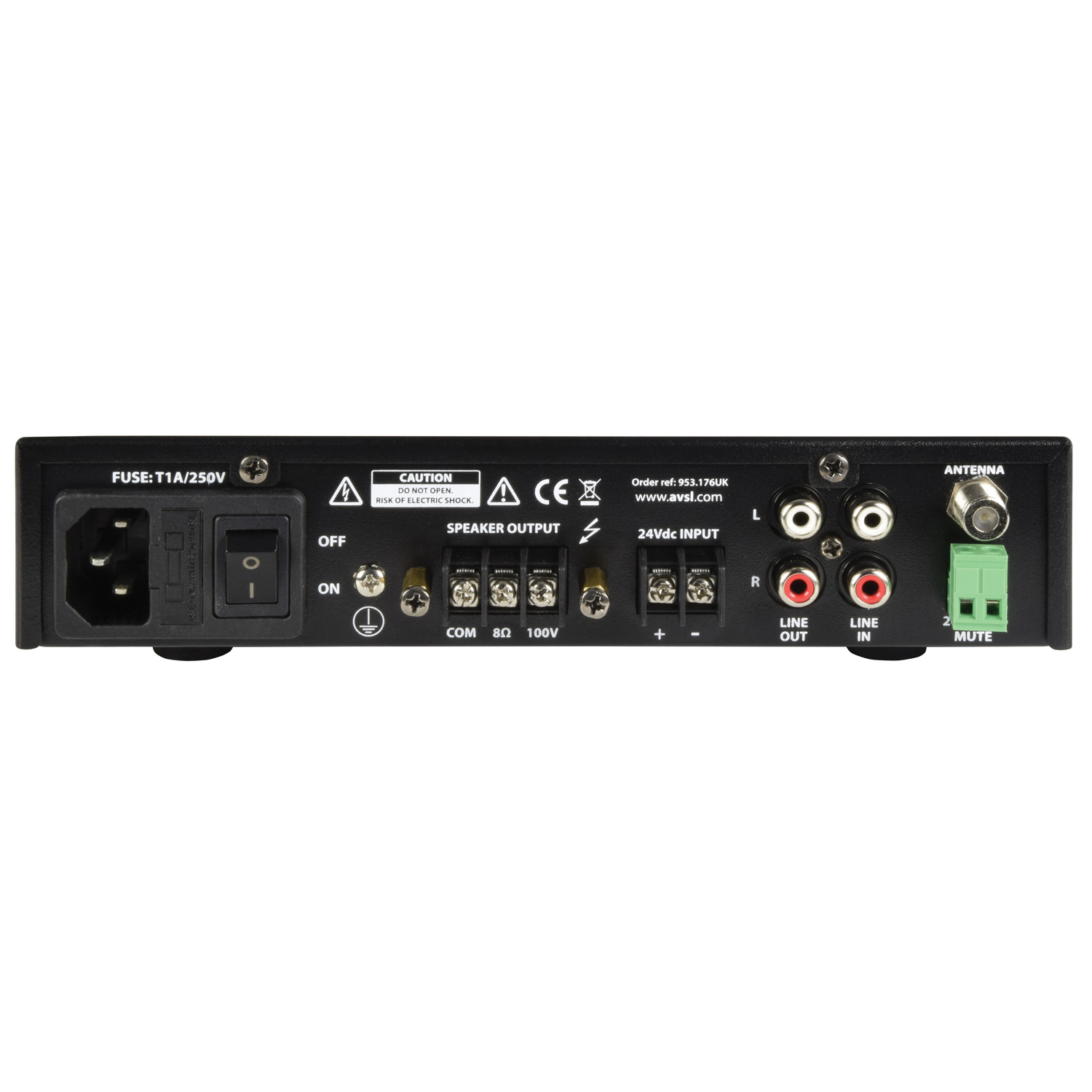

• Speaker outputs: Screw terminals – 100V / 8 Ohms / Com
• DC power: 24Vdc screw terminals
• Mute: 24V relay contacts
• THD: <0.4% @ 1kHz
• Input impedance: 1k Ohms (mic/line)
• Input sensitivity: -10dB (line), -45dB (mic)
• SNR: 80dB (line), 75dB (mic)
• Frequency response: 100Hz – 18kHz
• Output power : rms: 60W
• Alarm output: Fog, siren & alert generator

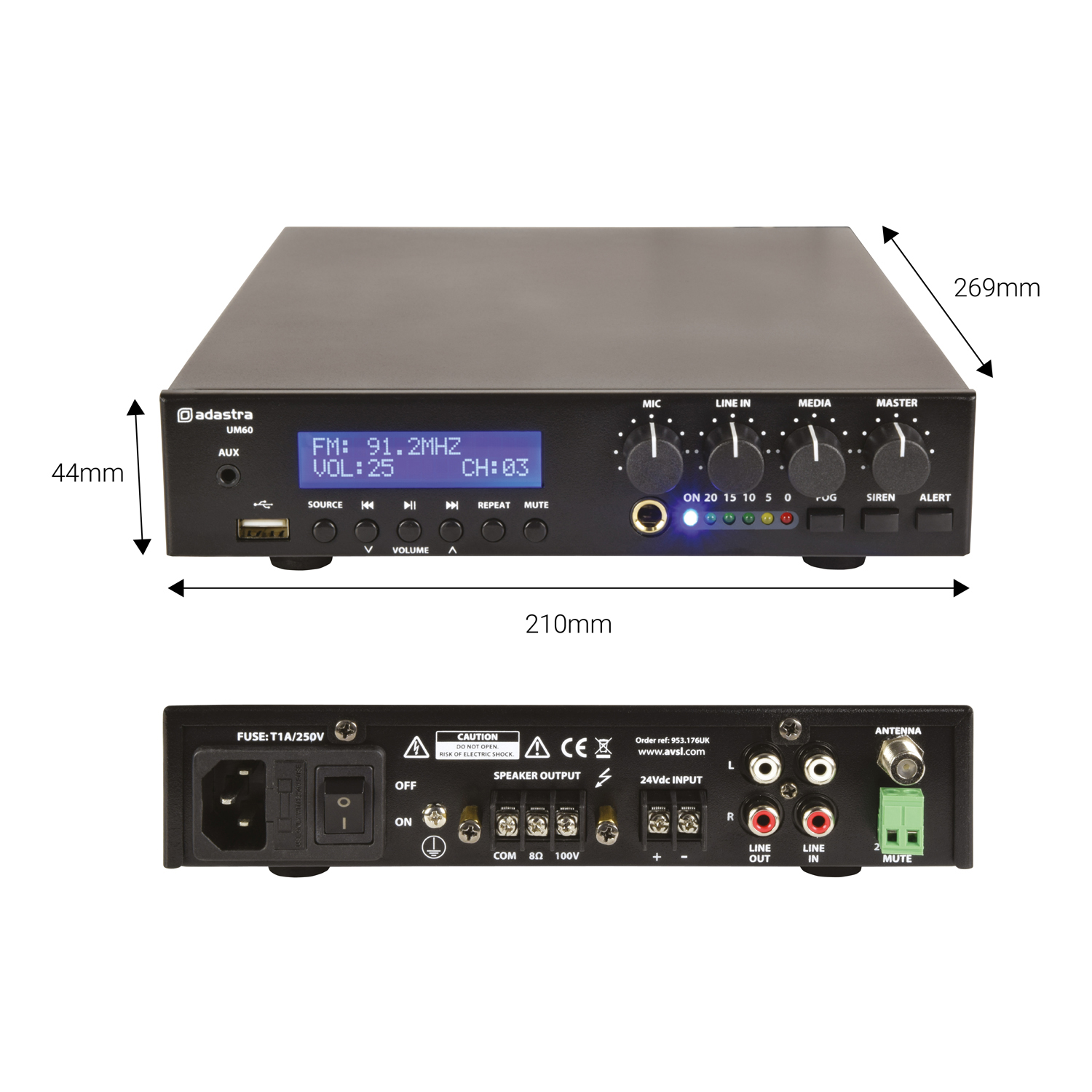

• Dimensions: 269 x 210 x 44mm
• Weight: 2.47kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
