QTX VH45B Wireless Microphone System

Description

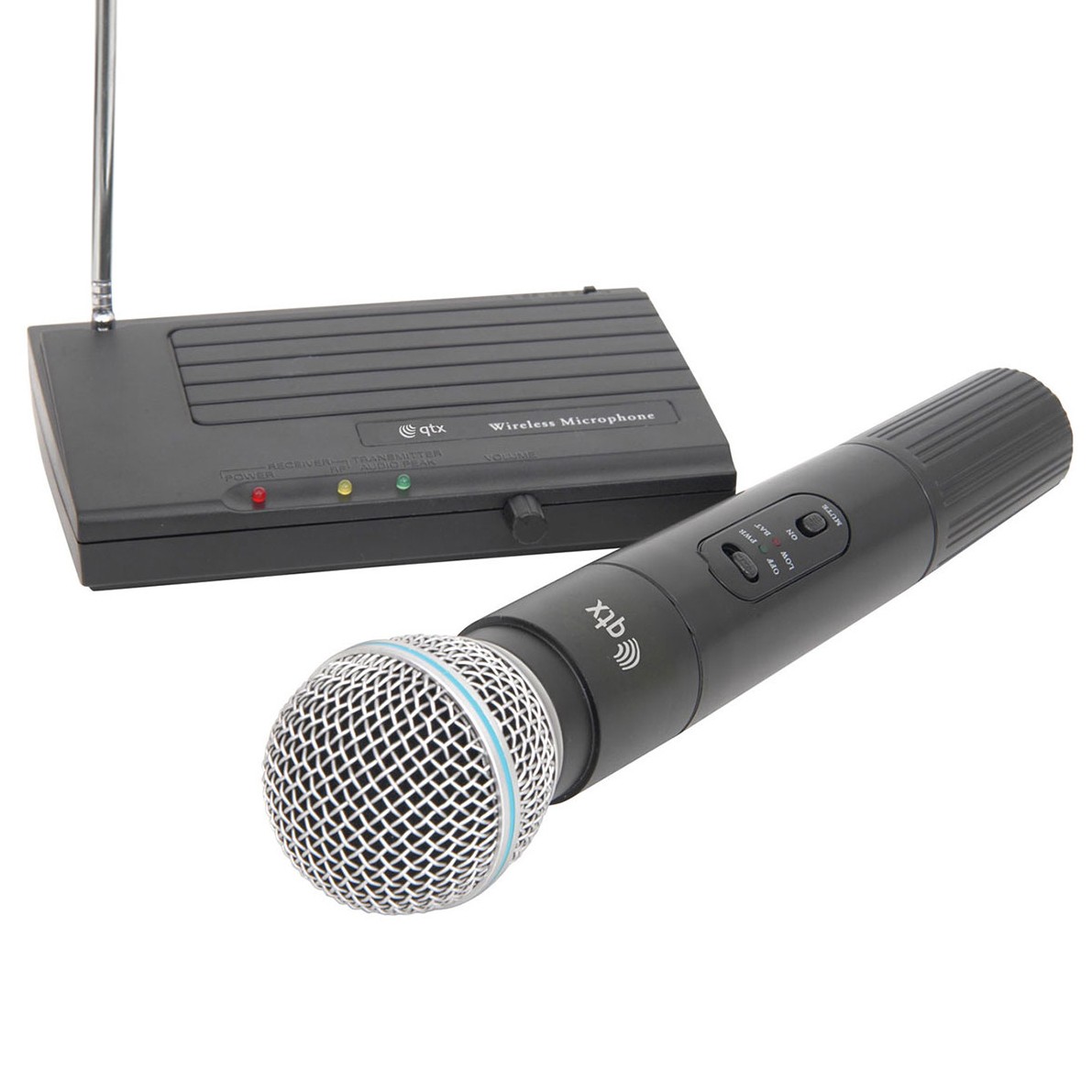

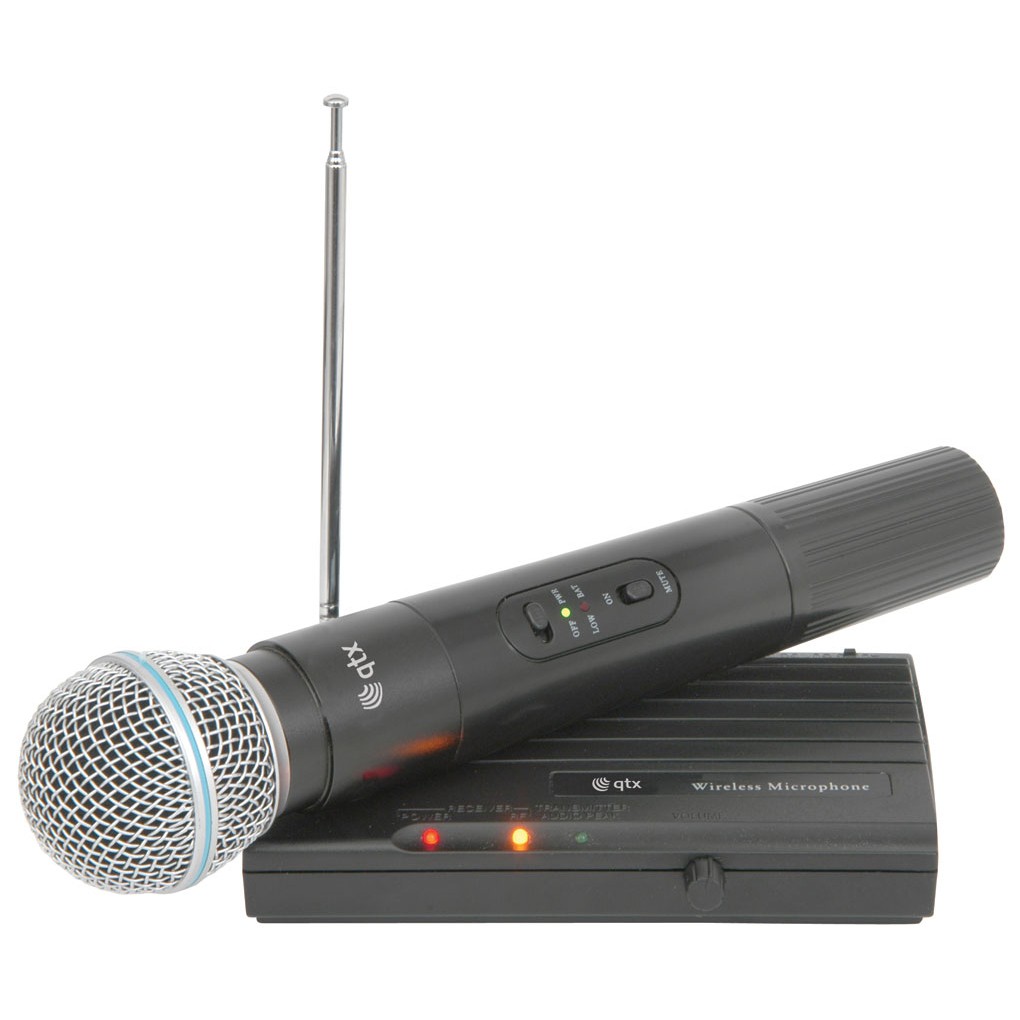

QTX VH45B handheld compact VHF wireless microphone system

Handheld VHF wireless microphone transmitter with desktop receiver, supplied with power supply, batteries and audio lead

• License-free VHF in the UK
• On/Off and mute controls on handheld microphone transmitter
• Compact desktop receiver
• Up to 50m range
• Batteries and jack lead supplied
• Power supply : receiver: 9 – 15Vdc 200mA (supplied)
• Battery : transmitter: 9V PP3 (supplied)
• Operating frequency: 174.5MHz
• Maximum range: up to 50.0m
• Output connection: 6.3mm jack
• S/N ratio: >85dB
• THD: <0.2%
• Dimensions : transmitter: 250 x 50mmØ
• Dimensions : receiver: 150 x 110 x 35mm
• Weight : transmitter: 280g
• Weight : receiver: 190g

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

This legacy fixed frequency VHF wireless microphone set is not suited to be used with other wireless microphone systems

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
