Monacor WP-1 Series Wall Modules

Description

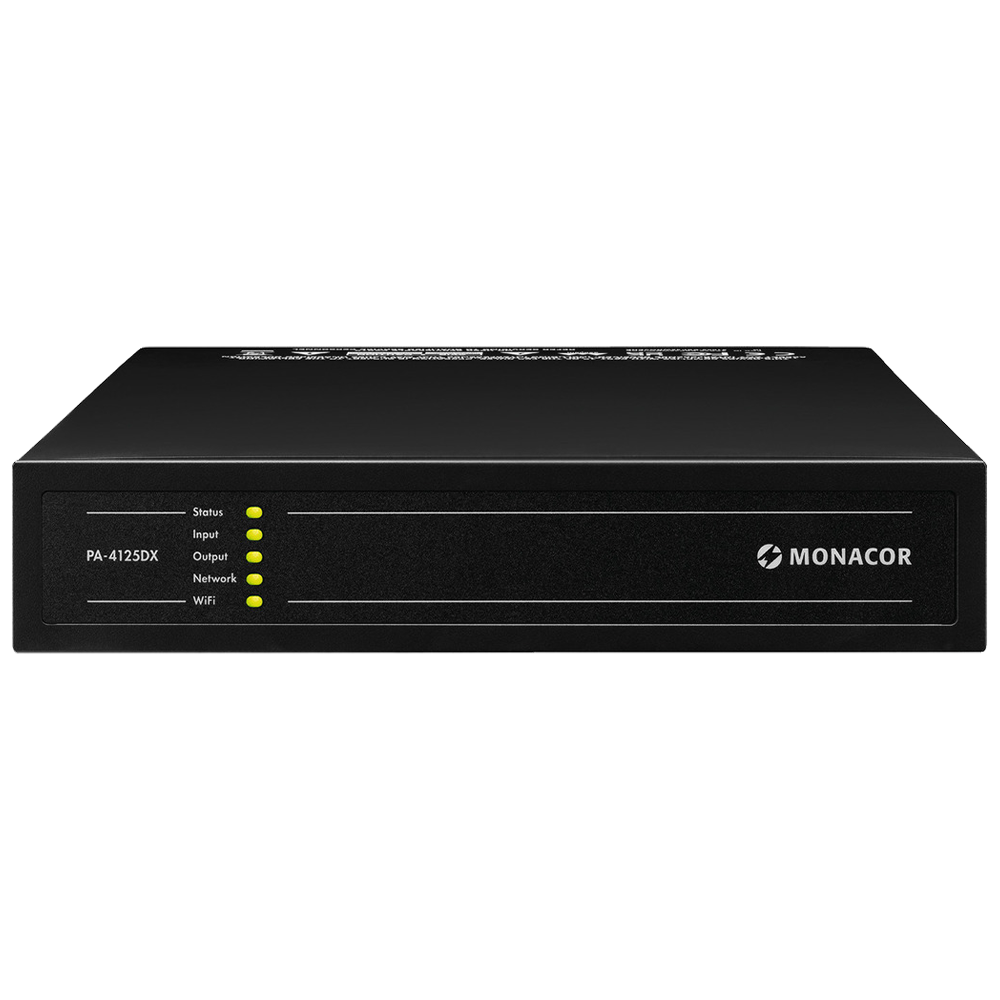

Monacor WP-1 series wall modules for use with PA-4125DX 500W mixer amplifier

Wall module for controlling 4-zone matrix mixing amplifier PA-4125DX.

• Connection of up to 8 x wall module WP-1/BK or WP-1/WH to each amplifier PA-4125DX
• Each wall module can be assigned to any sound zone of the PA-4125DX via WebControl app
• Source can easily be changed or volume level be regulated via preset minimum and maximum volume levels
• PoE for easy network pairing, real-time synchronisation of the devices with the system and power supply of the controller
• PIN code protection for easy and extended access, including switching off the system when leaving the location
• Intuitive menu for simple installation, system setup and an easy user operation
• Adjustable screen and backlight for controlling brightness and colour
• High-performance polymer of Danish design with smooth matt surface and covered screws
• Mounting in standard flush-mounted socket

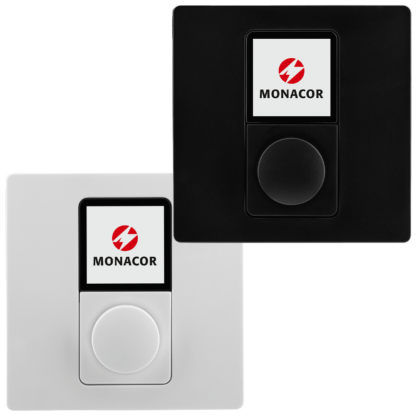

• Available in either black or white:

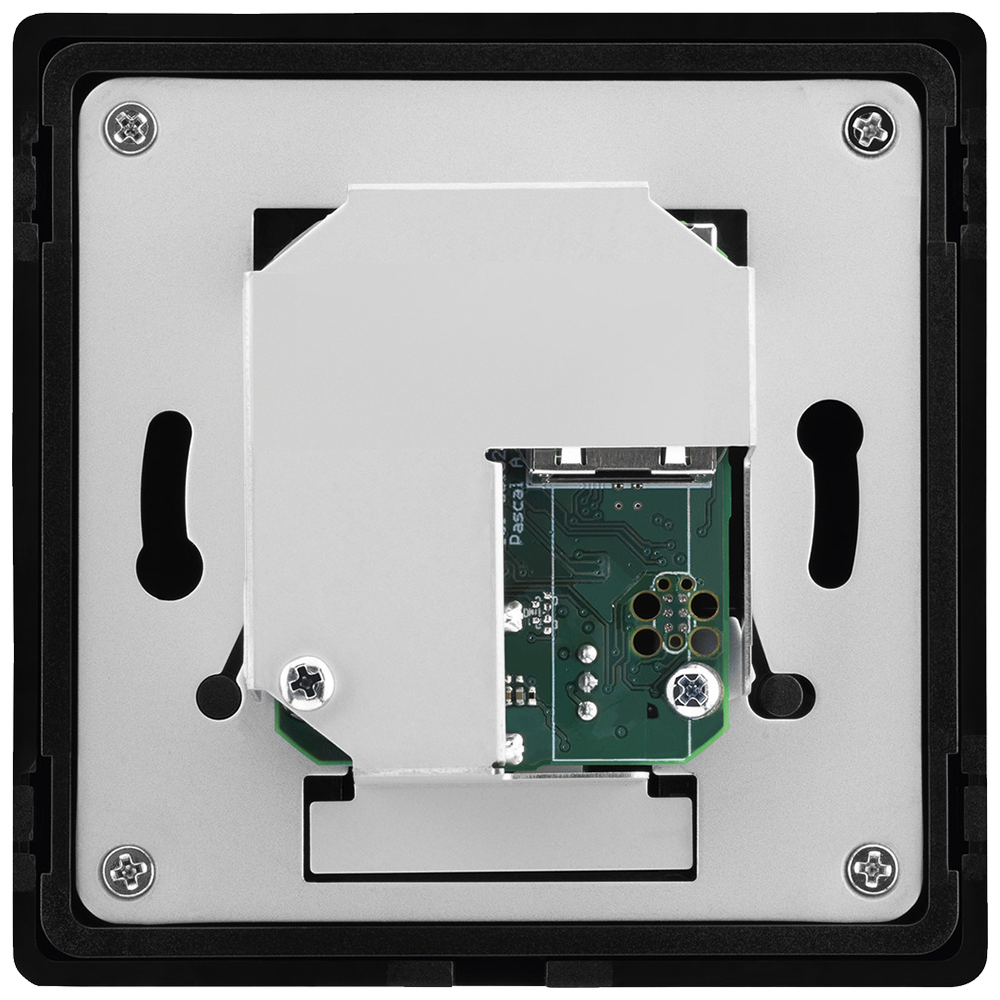

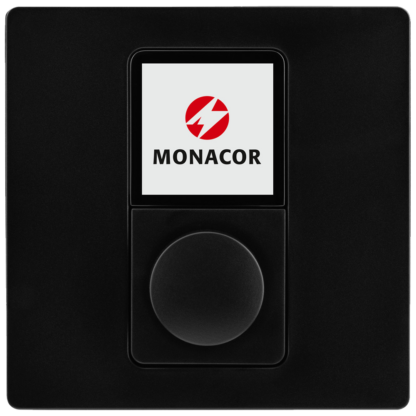

  • Black: EU standard colour black RAL9005

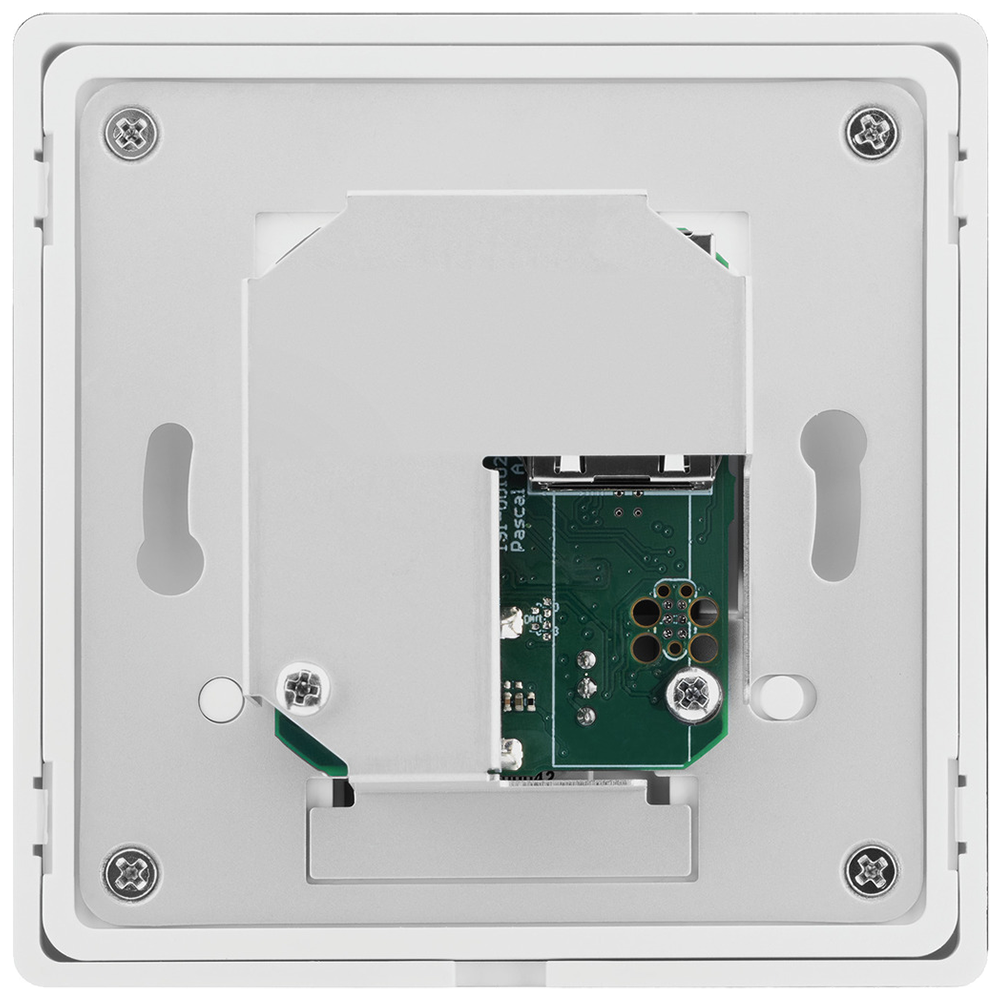

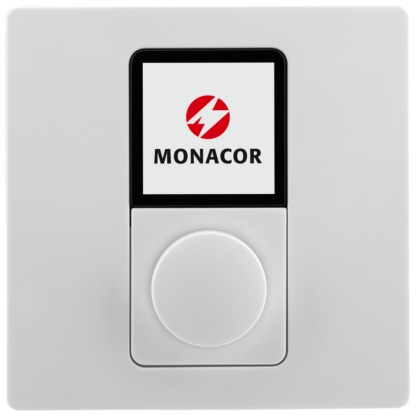

  • White: EU standard colour white RAL9003
• Description: wall module
• Type: remote control of a zone
• Suitable for PA-4125DX
• Power supply: PoE, 3.84 W max.
• Admissible ambient temperature: 0-40 °C
• Dimensions: 87 x 87 x 43 mm
• Mounting depth: 23 mm
• Weight: 124 g
• Connections: 1 x RJ45
• Other features: 100 m max. cable length

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
