Omnitronic XDP-1502 CD and Media Player

Description

Omnitronic XDP-1502 CD and MP3 media player with remote control

The compact XDP-1502 is designed as a user-friendly player for DJ racks. It requires only 2 height units, yet is packed with intuitive features such as pitch control, beat matching and seamless loops. The XDP-1502 plays audio CDs, CD-Rs and MP3 CDs and provides the necessary connections for USB and SD media up to 64 GB.

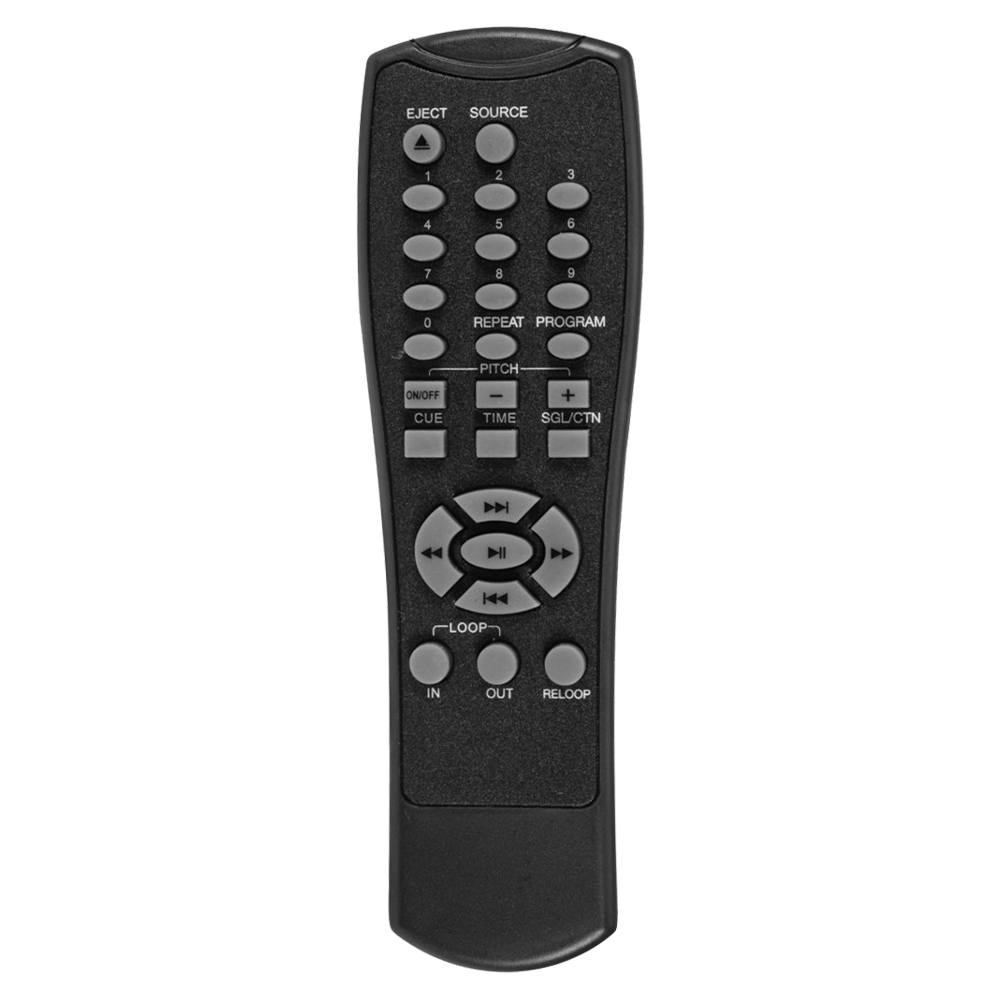

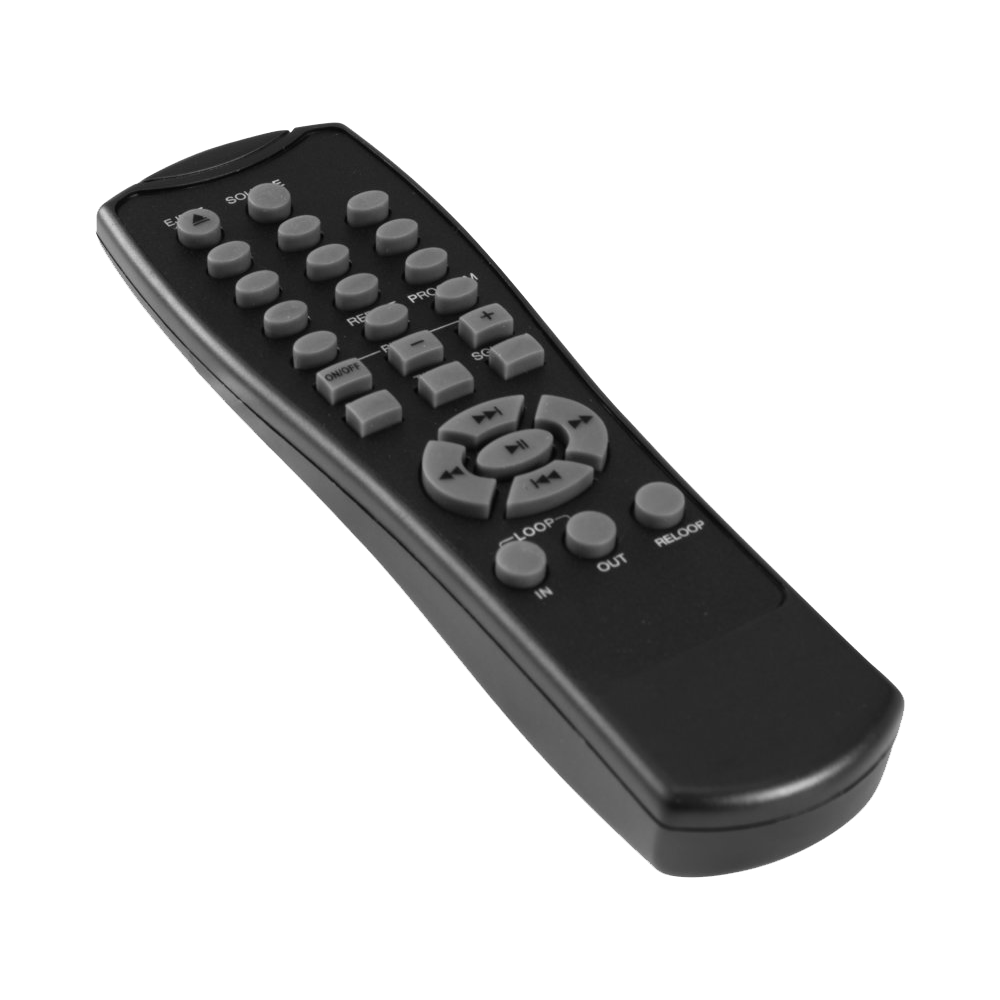

The supplied infrared remote control makes operation particularly convenient and adds a programming mode for your own playlists to the range of functions. This device is so versatile that it is not only indispensable for DJs but will also wow operators of bars, restaurants and dance studios.

• USB 2.0 port for USB storage media
• SD(HC) card slot
• Bright dot-matrix VFD display with ID3 tag support
• Easy-turning scratch jog dial with mode selector: pitch bend, scratch, fast or frame search
• Folder navigation
• Supports ID3 tags
• Pitch bend via jog dial or separate buttons
• Cue function
• Seamless loop/reloop
• Manual beatcounter
• Instant start
• Single or continuous play
• Repeat function
• Title programming
• Bargraph display
• Pitch adjustment is displayed in %
• Extra-large play/pause and cue buttons with color illumination
• Control via IR remote control
• VFD display
• (19″) 48.3 cm rack installation 2 U
• Pitch range: ±4%, ±8%, ±16%

Technical Specifications

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 8 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) “figure 8” mounting version power supply cord with Euro plug (provided)
• Frequency range: 20 – 20000 Hz
• Control: IR remote control
• Audio player: USB + SD + CD player, pitch, Anti-shock, Seamless loop
• CD player drive: Drawer-Single CD drive
• Display type: VFD display
• Display: CD-DA play time elapsed , play time remaining , total play time remaining , Bargraph; MP3 play time remaining , play time elapsed , Bargraph , ID3-Tags
• Control elements: Source selector
• Status LED: Power, chanal source

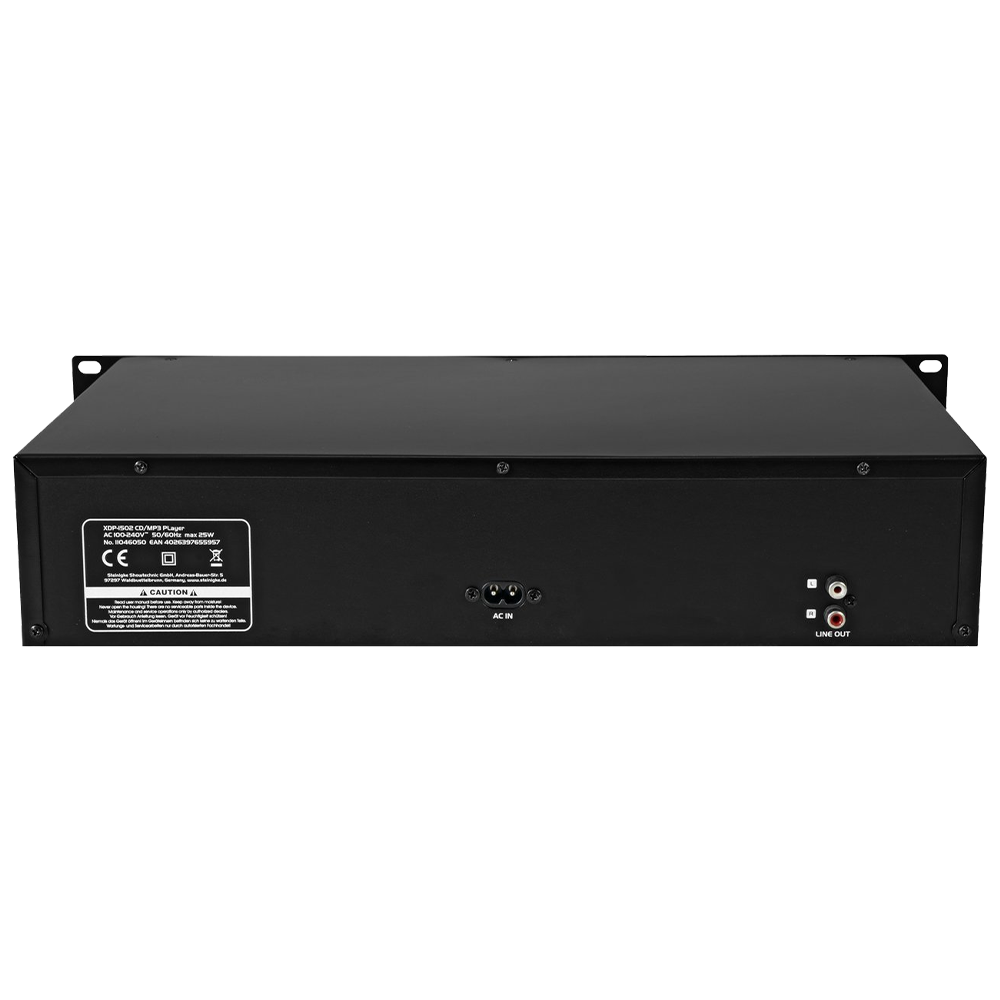

• Connections: Output: line via stereo RCA 1,75 V
• Music format: CD, CD-R, CD-RW, CD-DA, MP3
• Available storage media: USB devices/SD cards max. 64GB
• Pitch range: ±4%, ±8%, ±16%
• Material: Metal
• Color: Black
• Housing design: (19″) 48.3 cm rack installation, 2 U
• Dimensions: Width: 48.2 cm
• Depth: 27 cm
• Height: 9.8 cm
• Weight: 3.5 kg
• Remote control
• Power supply: 3 V DC
• Battery: 2 x AAA batteries (not included)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
