Adastra Z5M 5-Zone Audio Mixer

Description

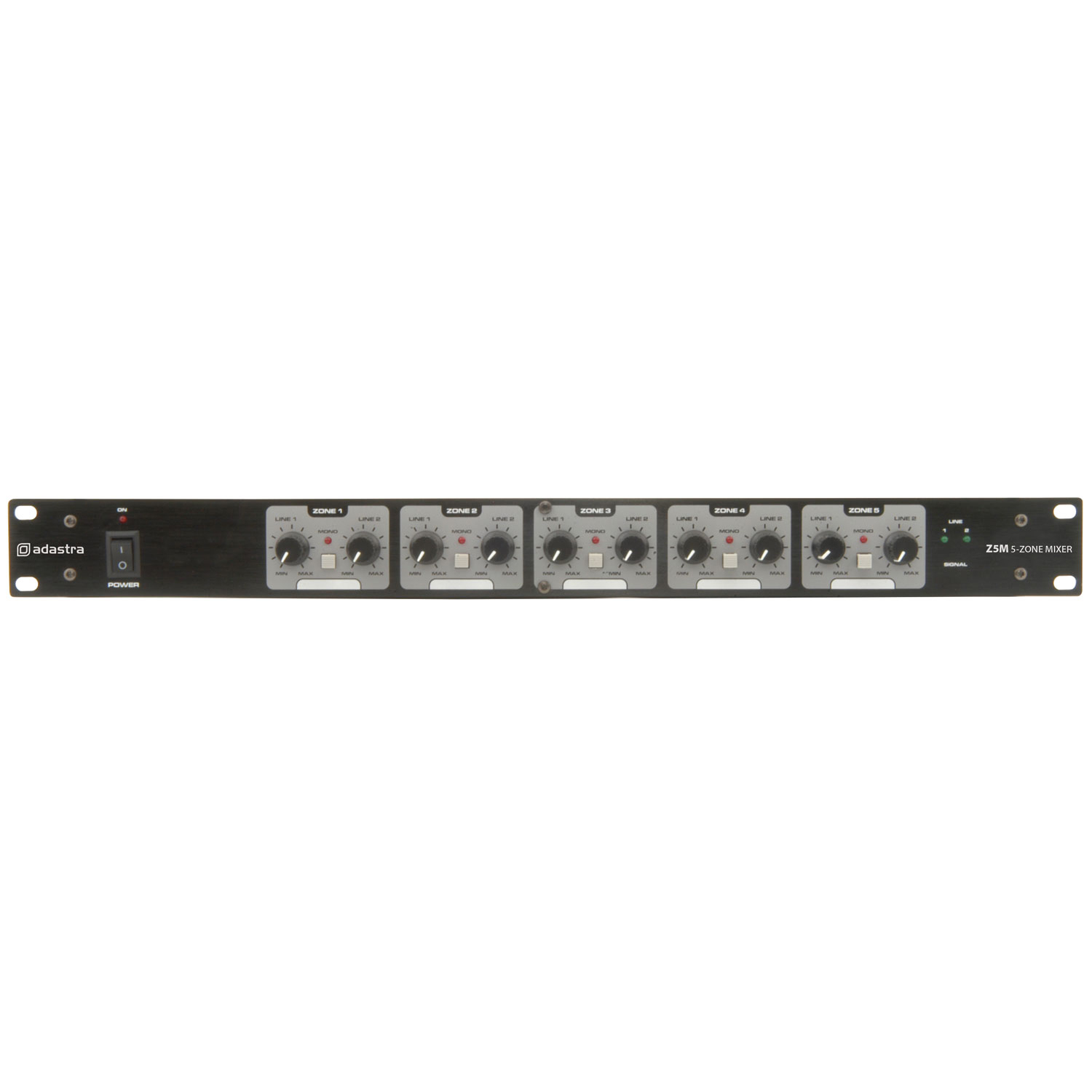

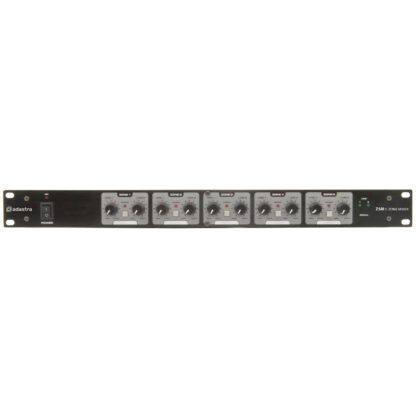

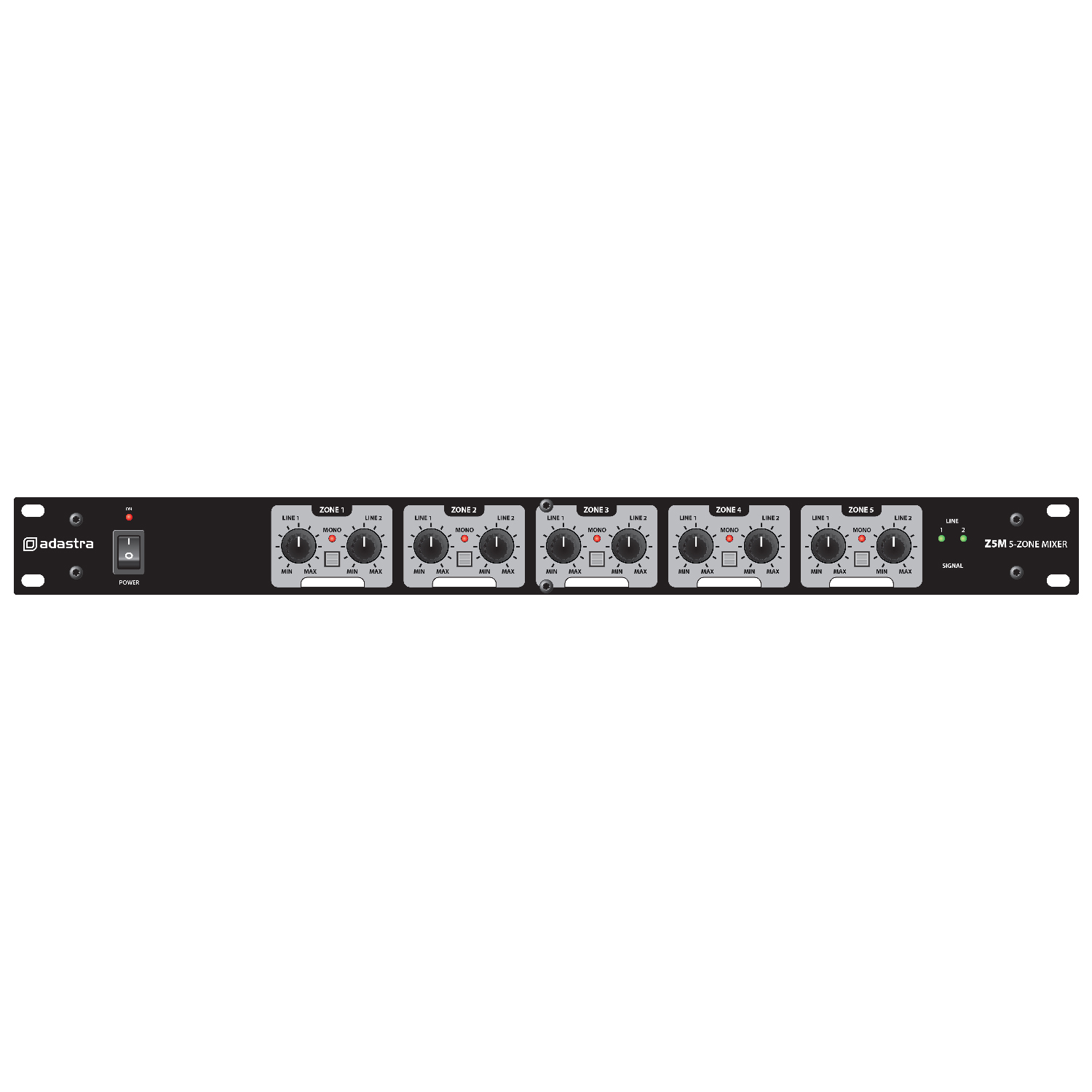

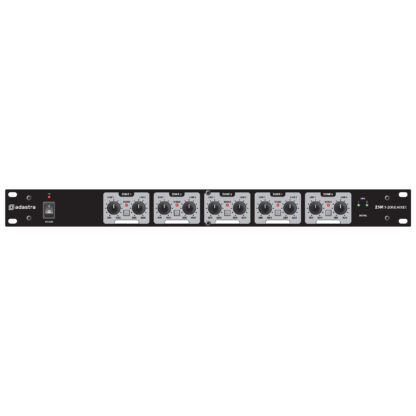

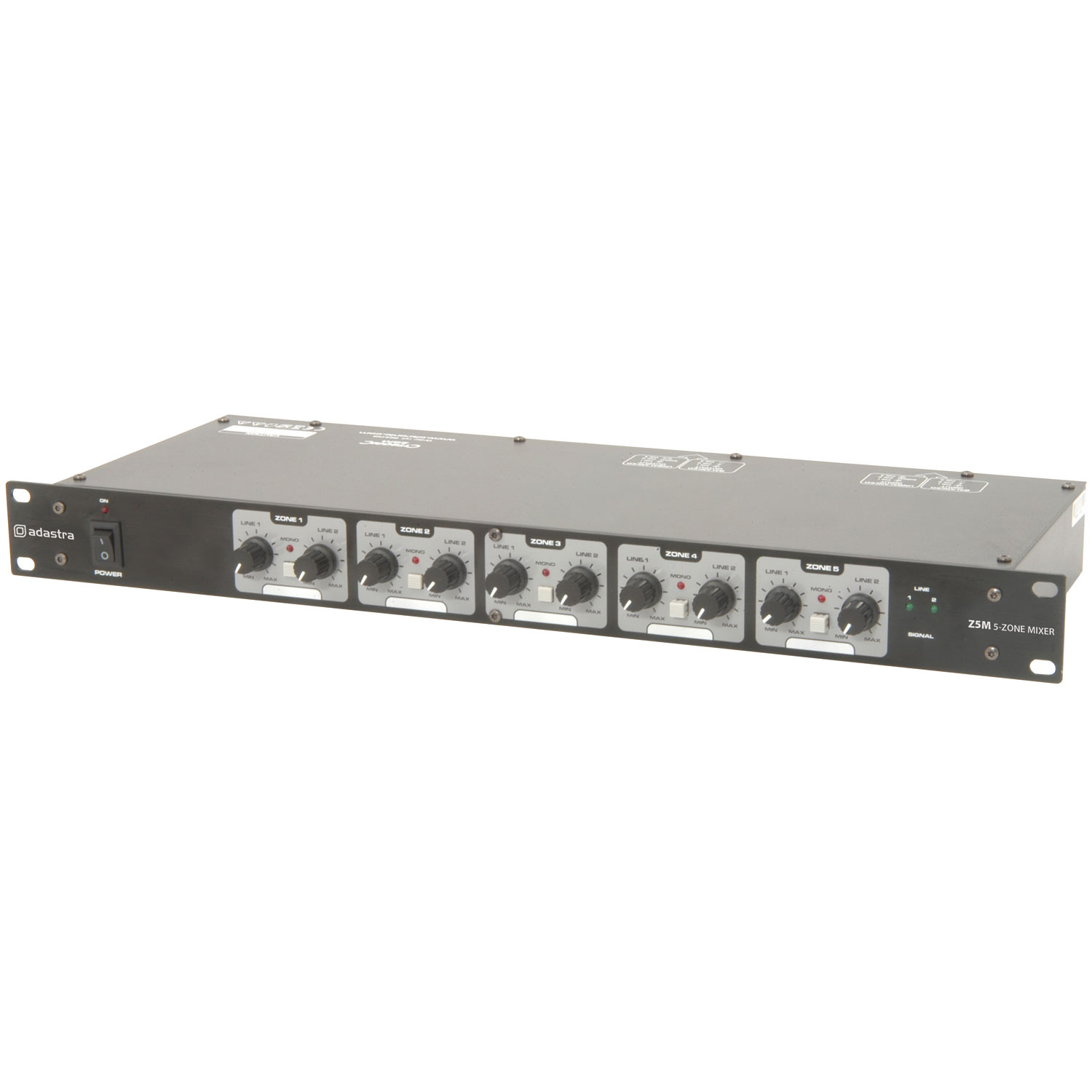

Adastra Z5M 2-input 5-zone zoning mixer

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

• 2 inputs to 5 zones
• Mono selectable for each zone
• Fully balanced XLR connections
• Power supply: 115/230Vac 50/60Hz (IEC)
• Inputs Line: 1 L+R, Line 2 L+R, balanced XLRF

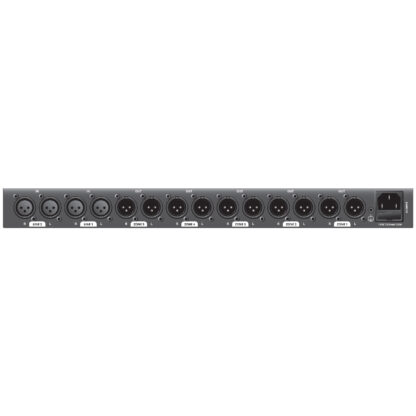

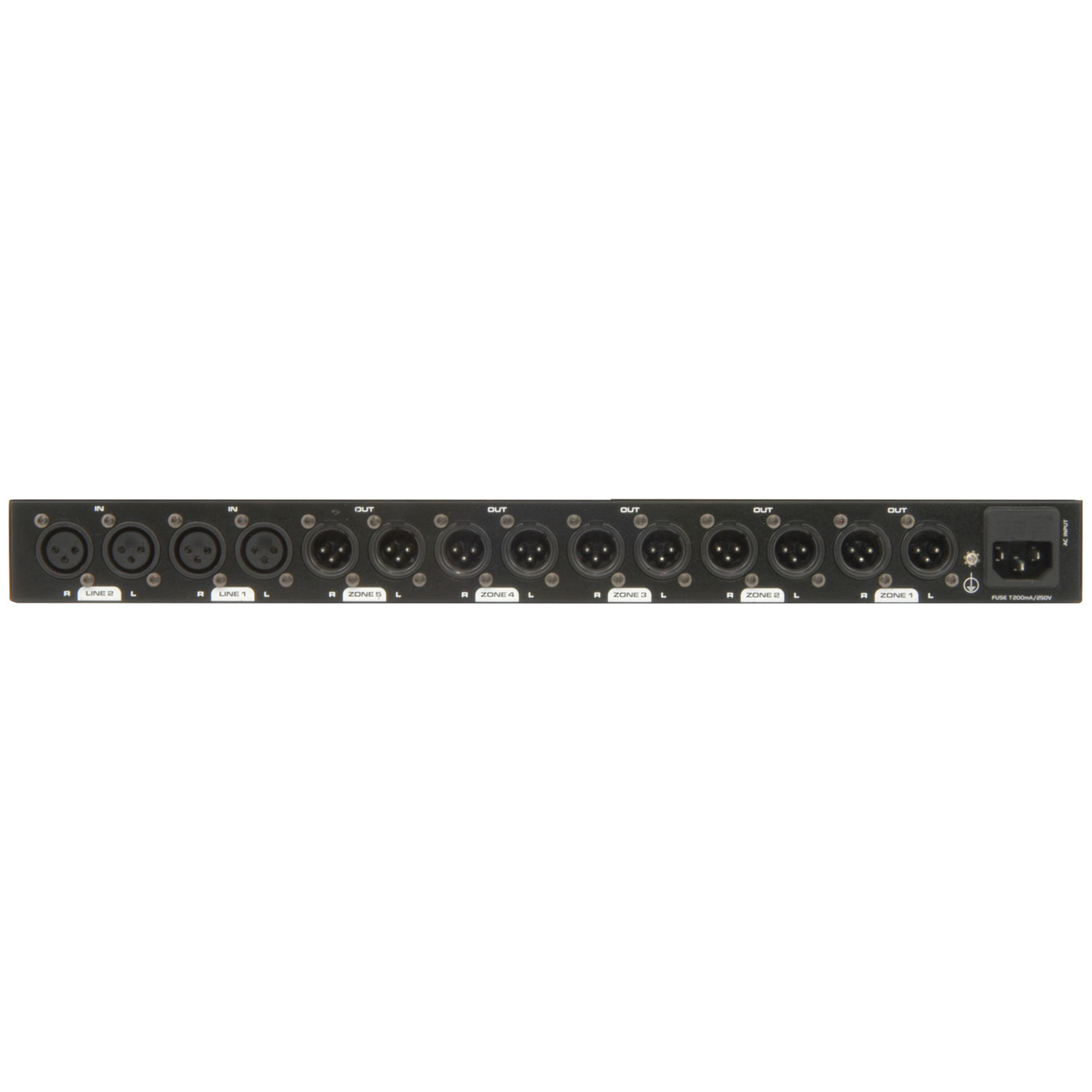

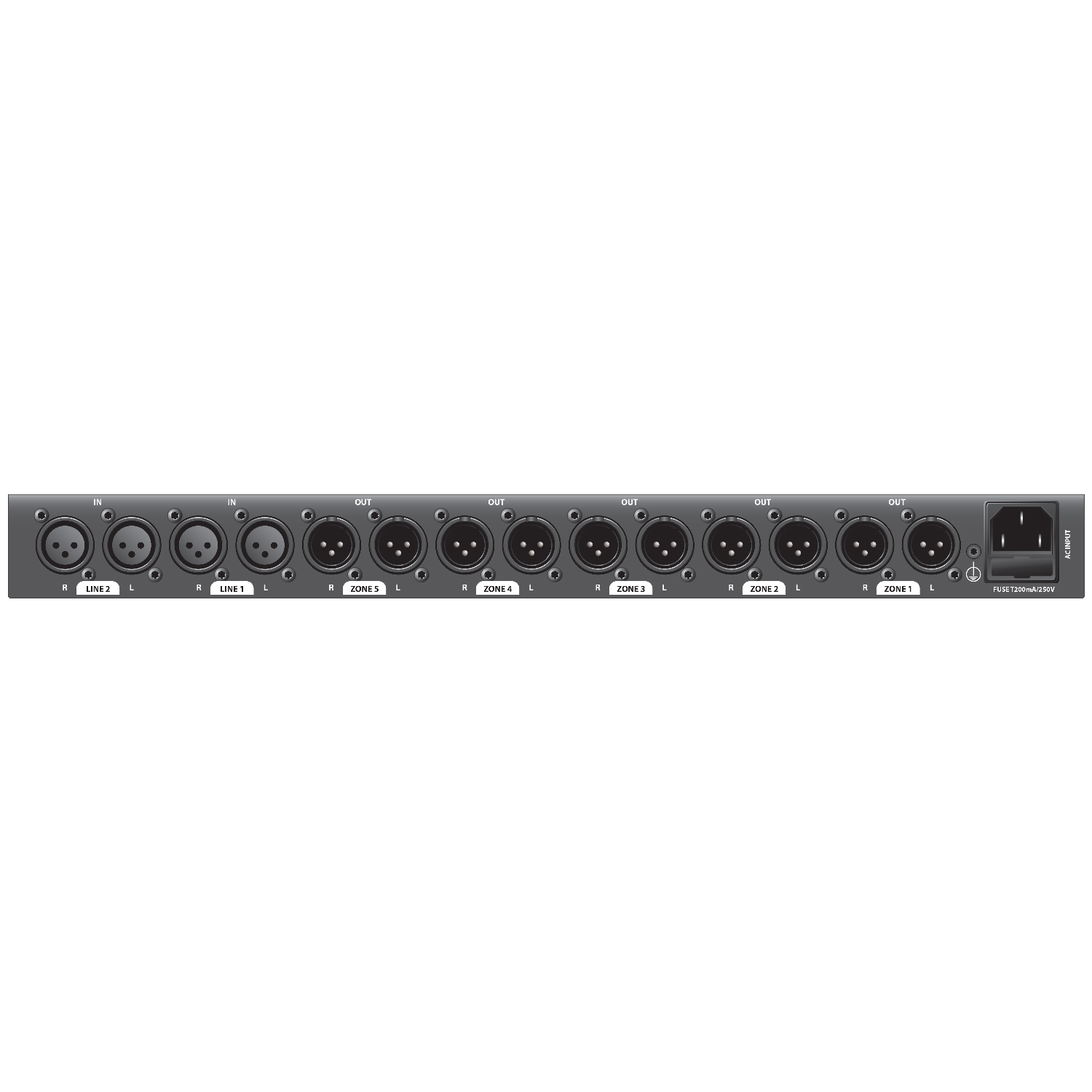

• Outputs Zone: 1 to 5 L+R, balanced XLRM
• Input impedance: 40k Ohms
• Output impedance: 220 Ohms
• Frequency response: 20Hz – 25kHz, +0/-1dB
• Signal to noise ratio: >100dB
• THD: <0.005%
• Dimensions: 483 x 175 x 44mm
• Weight: 2.2kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
