IMG Stageline ECM-302 Series Boundary Microphones

SKU: 232370 | 233630

£92.50£95.00

Black or white surface mounting boundary microphone

PDF

Description

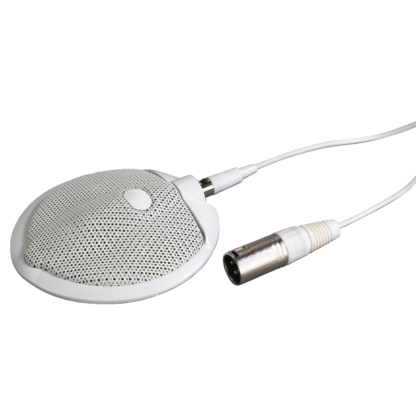

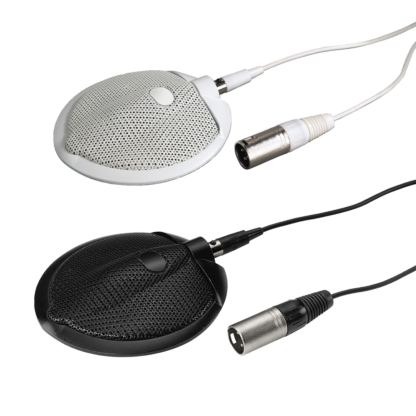

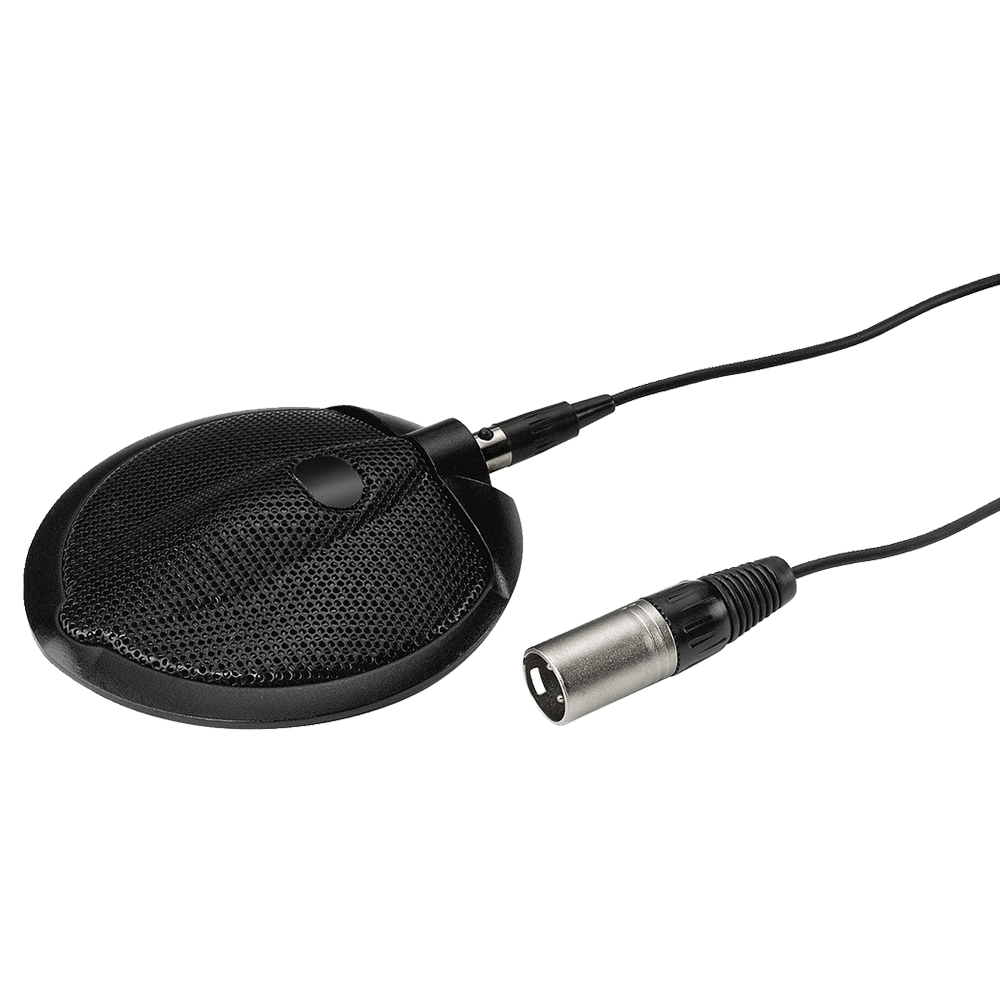

IMG Stageline ECM-302 series boundary microphones

IMG Stageline ECM-302 series boundary condenser microphones for surface fixing on any wall or other boundary surface. These microphones require a 9 to 48v phantom power supply supplied by your mixer or amplifier or by a stand alone power supply such as the EMA-200

  • Integrated electronics for use with phantom power 9-48V DC current
  • Transformer-balanced AF output
  • With 6m connection cable 3-pole mini XLR/XLR
  • Colour: White (ECM-302B/WS) or Black (ECM-302B)
  • Type: boundary microphone
  • Transmission method: cable
  • Polar pattern: semi-cardioid
  • System: electret
  • Audio frequency range: 30-20,000 Hz
  • Nominal impedance: 250 Ω
  • Sensitivity: 22 mV/Pa
  • Maximum sound pressure: 140 dB
  • Power supply: DC current  17-48 V, phantom power
  • Admissible ambient temperature: 0-40 °C
  • Dimensions: Ø 120 mm x 22 mm
  • Weight: 350 g
  • Cable: 6 m
  • Connection: 3-pole mini XLR/XLR

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.35 kg
Dimensions12 × 12 × 2.2 cm
Connector

3 Pin XLR (Male)

Connection

3 Pin Mini XLR

Colour

Black, White

Brand

IMG Stageline
